Product Detailed Parameters
- Description：CONN HEADER R/A 12POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

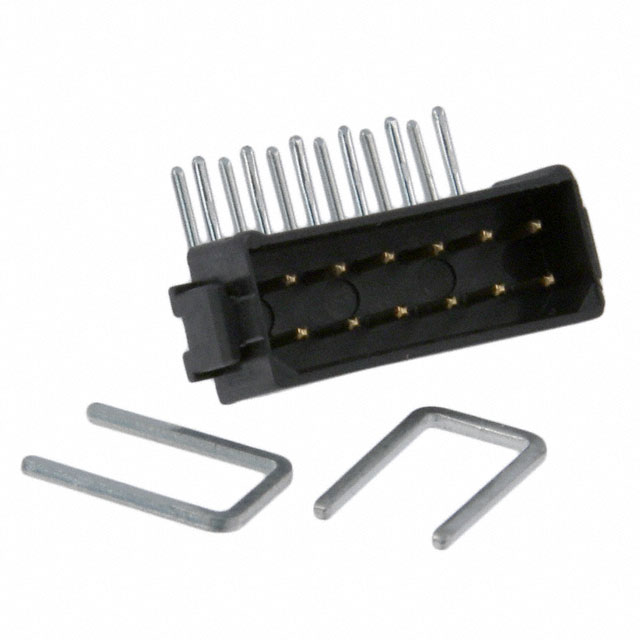

The Harwin M80-8411242 is a right-angle board connector from the Datamate L-Tek series. It features a 2-row configuration with 16 positions and a 2mm pitch spacing. The connector utilizes gold-plated phosphor bronze contacts and a black PPS insulator. Rated for 120V and 3A, it supports through-hole solder termination. Operating temperature ranges from -55°C to 125°C.
Feature Summary
- Right-angle design facilitates compact board-to-board or wire-to-board integration.
- Push-turn locking mechanism ensures secure mating connection stability.
- Gold-plated contacts provide reliable signal transmission in demanding environments.
Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment housing
- Automotive electronic modules
Procurement Notes
Verify that the specific part number matches the required right-angle orientation and 16-position count. Confirm RoHS compliance status if restricted substances are a concern. Ensure compatibility with mating sockets within the same Datamate L-Tek family. Check for any specific ordering suffixes that may alter pin configurations or plating thickness.
Selection Notes
Select this component when a right-angle header is necessary for space-constrained layouts. The 2mm pitch allows for high density while maintaining 3A current capacity. Consider the push-turn lock for vibration resistance. Verify that the 120V rating meets circuit requirements. Compare against straight headers if vertical stacking is not required.
Part Context
This part belongs to the Datamate L-Tek series by Harwin Inc., known for modular connectivity solutions. The M80 prefix indicates the specific product line. It complements female sockets and cable assemblies within the same ecosystem, ensuring interoperability across various industrial and commercial applications.
Replacement Considerations
Direct substitutes include other Harwin Datamate L-Tek right-angle headers with identical 16-position counts and 2mm pitch. Cross-referencing with M80-8411642 variants is recommended. Ensure mechanical dimensions and locking mechanisms match before substitution.
FAQ
What is the contact material used in this connector?
The contacts are made of phosphor bronze with gold plating.
Does this connector support wire-to-board connections?
Yes, it is designed for both board-to-board and wire-to-board applications.
