Product Detailed Parameters

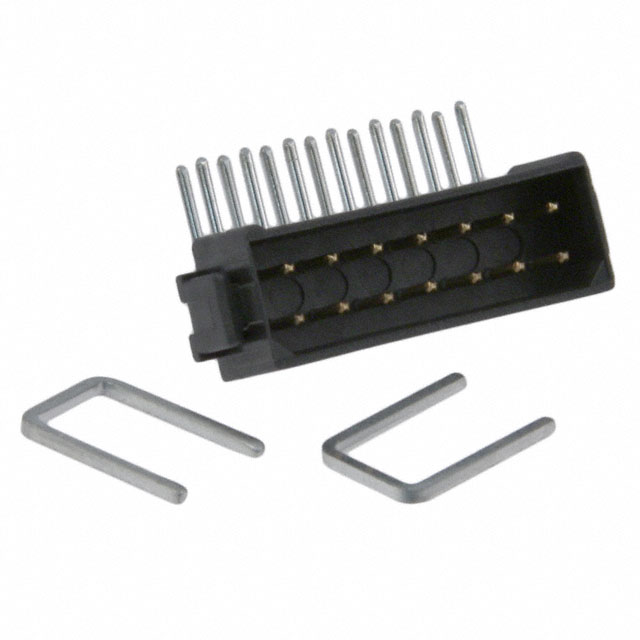

- Description：CONN HEADER R/A 14POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview
The Harwin M80-8411442 is a Datamate L-Tek header and wire housing assembly designed for right-angle PCB mounting. It features a dual in-line (DIL) configuration with 7+7 positions, totaling 14 contacts. The connector utilizes a 2 mm pitch across two rows. Contact plating is specified as tin, and the unit is RoHS compliant. This socket assembly is engineered for secure board-to-board or wire-to-board interconnections.
Feature Summary
- Right-angle mounting orientation for space-efficient PCB integration
- Datamate L-Tek series design ensuring high reliability in harsh environments
- Latched locking mechanism to maintain connection integrity under vibration
Applications
- Board-to-board interconnects requiring right-angle routing
- Wire-to-board connections in industrial control systems
- Applications subject to shock, vibration, or acceleration
Procurement Notes
Verify that the specific ordering suffix matches the required unlatch variant and tin plating specification. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Ensure the right-angle orientation aligns with the mechanical layout requirements of the target printed circuit board design.
Selection Notes
Select this component when a right-angle, latched female socket assembly is required for the Datamate L-Tek system. The 2 mm pitch and 14-position count define the electrical density. Verify compatibility with corresponding male pin headers from the same series to ensure proper mating force and contact alignment.
Part Context
This part belongs to the Harwin Datamate L-Tek family, which is engineered for safety-critical applications. The series is characterized by high durability and resistance to environmental stressors. Components in this line are designed to withstand repeated mating cycles without performance degradation.
FAQ
What is the locking mechanism type for this connector?
The M80-8411442 features a latched locking mechanism to secure the connection.
Is this connector suitable for high-vibration environments?
Yes, the Datamate L-Tek series is designed to operate reliably in conditions involving high load vibrations, shocks, and accelerations.
