M80-8411642

Overview

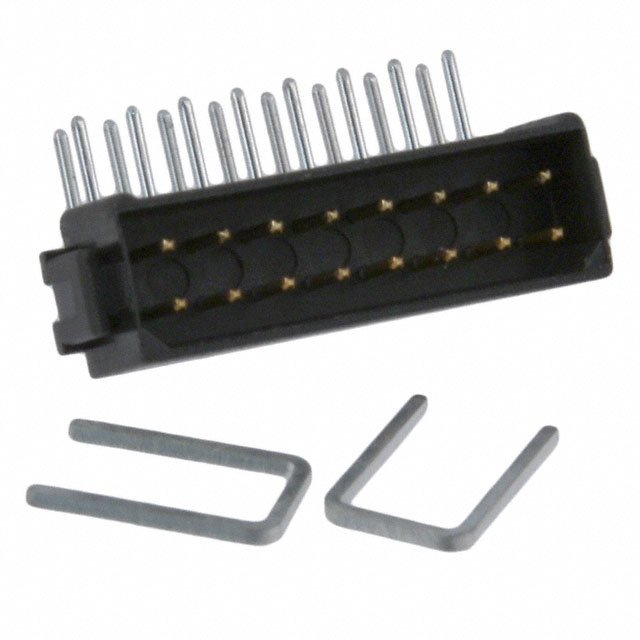

The Harwin M80-8411642 is a Datamate L-Tek series PCB header featuring 16 positions arranged in two rows with a 2mm pitch. It utilizes male pin contacts made of phosphor bronze with gold plating on the mating interface and tin on the tail pins. The connector supports board-to-board and wire-to-board connections via through-hole mounting. Rated for 120V and 3A current, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black PPS material, UL94 V-0 rated.

Feature Summary

• Includes integrated strain relief clips for mechanical stability
• Features four-wall shielding for enhanced protection
• Utilizes latching bracket for secure locking mechanism

Applications

• Board-to-board interconnects requiring right-angle orientation
• Wire-to-board connections in compact electronic assemblies
• Industrial control systems demanding high reliability

Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and housing color variations. Ensure compatibility with mating receptacles from the same Datamate L-Tek family. Confirm that the through-hole tail length meets the target PCB thickness requirements. Check for RoHS compliance status if restricted substances are a concern for the application.

Selection Notes

Select this component when a right-angle, double-row header with strain relief is required. The 2mm pitch allows for dense packing while maintaining adequate spacing. Consider the 120V rating for low-voltage signal or power distribution. Ensure the mating connector provides corresponding female sockets with compatible locking features.

Part Context

This part belongs to the Datamate L-Tek family, designed for robust connectivity. It complements other headers and receptacles in the series. The design emphasizes durability and ease of assembly. It serves as a standard solution for vertical space-constrained environments.

Replacement Considerations

Direct substitutes include other Harwin Datamate L-Tek headers with identical 16-position, 2-row, right-angle configurations. Verify that any alternative maintains the same 2mm pitch and through-hole termination style. Ensure mating connectors remain compatible with the original locking mechanism.
