Product Detailed Parameters
- Description：CONN HEADER R/A 18POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

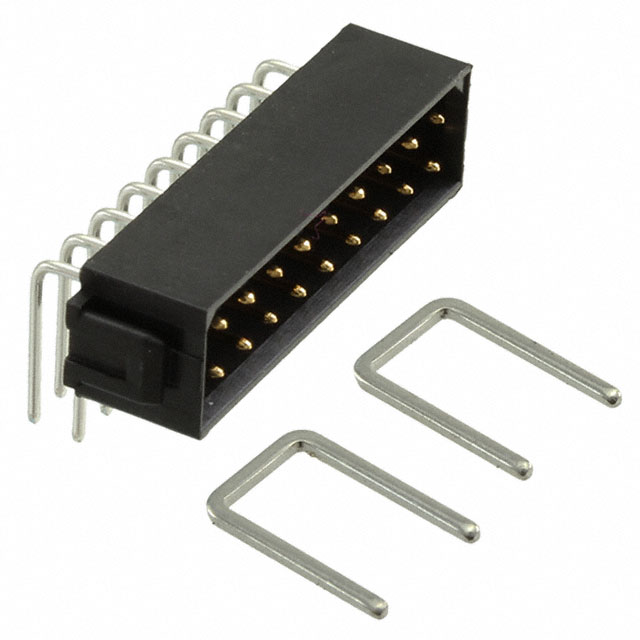

The M80-8411842 is a Datamate L-Tek series male header connector manufactured by Harwin Inc. It features an 18-position (9+9) dual in-line configuration with a 2.00mm pitch. Designed for right-angle through-hole mounting, this connector utilizes tin-plated contacts and includes latched housing for secure engagement. The component supports board-to-board or wire-to-board applications within the specified electrical ratings.
Feature Summary
- Dual in-line male pin configuration for high-density interconnects
- Right-angle orientation facilitates compact PCB layout integration
- Integrated latch mechanism ensures positive mating retention
- Tin-plated contact surfaces provide reliable conductivity
Applications
- Board-to-board interconnection systems
- Wire-to-board assembly connections
- Industrial control module interfaces
- Consumer electronics internal wiring
Procurement Notes
Verify that the specific part number M80-8411842 matches the required 18-position DIL male header specification. Confirm that the right-angle through-hole mounting style aligns with the target PCB design constraints. Ensure compatibility with the Datamate L-Tek mating system requirements before finalizing procurement orders.
Selection Notes
Select this component when a 2.00mm pitch male header with right-angle termination is required. The 18-pin count suits applications needing moderate channel density. Verify that the tin plating meets environmental durability needs and that the latching feature provides sufficient mechanical stability for the intended operational environment.
Part Context
This connector belongs to the Datamate L-Tek family, characterized by its robust mechanical design and versatile mounting options. The series is widely utilized in industrial and commercial sectors requiring reliable signal and power transmission across multiple connection points.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 18-position DIL male specification, 2.00mm pitch, right-angle orientation, and latching mechanism characteristics.
