Product Detailed Parameters
- Description：CONN HEADER R/A 34POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

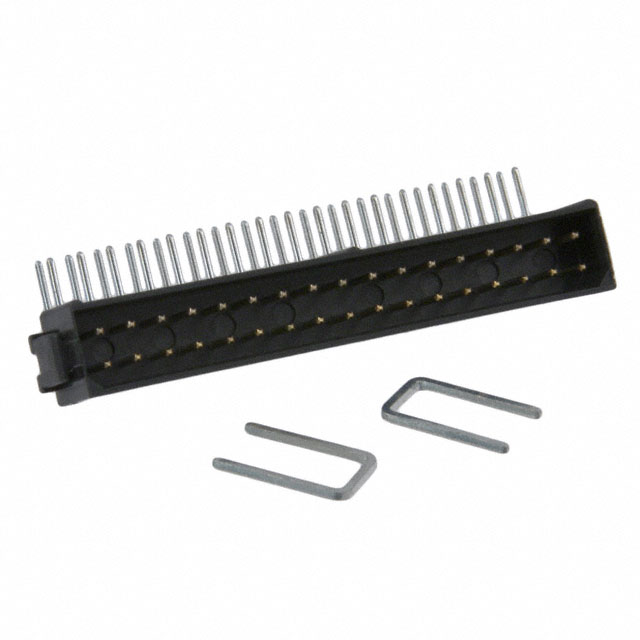

The M80-8413442 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a right-angle, through-hole mounting style with 34 positions arranged in a double row (17+17). The connector utilizes male pin contacts with a 2mm pitch and gold plating for mating surfaces. Rated for 120V and 3A, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black polyphenylene sulfide (PPS) with UL94 V-0 flammability rating.
Feature Summary
- Right-angle through-board termination for horizontal PCB integration
- Double-row configuration providing 34 contact positions
- Gold-plated phosphor bronze contacts for reliable signal transmission
- Integrated latch mechanism for secure mating engagement
Applications
- Industrial control system interconnections
- Data communication equipment backplanes
- Automotive electronic module connections
- Test and measurement instrument interfaces
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required cable assemblies or mating connectors. Confirm that the right-angle orientation matches the PCB layout constraints. Check for RoHS compliance documentation if environmental regulations apply to the final assembly. Ensure the 2mm pitch aligns with existing board design specifications.
Selection Notes
Select this component when a high-density, right-angle connection is required for space-constrained designs. The Datamate L-Tek series offers robust mechanical stability and high cycle life. Consider the 3A current rating for power distribution needs alongside signal integrity requirements. The shrouded design prevents misalignment during insertion.
Part Context
This part belongs to the Datamate L-Tek family, known for high-reliability rectangular connectors. The M80-841 base number indicates a standard header variant. The '3442' suffix typically denotes specific packaging or contact configuration details within the Harwin catalog structure.
Replacement Considerations
Direct substitutes include other Harwin Datamate L-Tek headers with identical 34-position, right-angle, through-hole specifications. Verify mating interface compatibility before swapping. Generic alternatives may lack the precise latch mechanism or current rating.
