M80-8420242

Overview

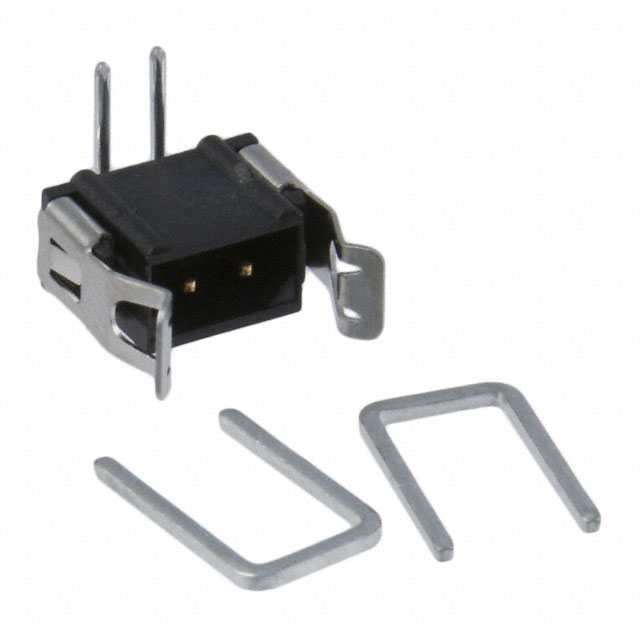

The M80-8420242 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a right-angle through-hole mounting style with two positions and a 2.00mm pitch. The assembly utilizes beryllium copper contacts with gold plating for mating surfaces and tin termination. Designed for board-to-board or cable applications, it includes a latching mechanism for secure connection. The unit operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss.
• Integrated latching mechanism provides secure mechanical retention during operation.
• Right-angle design facilitates efficient board-to-board or cable interconnection layouts.

Applications

• Board-to-board interconnections
• Cable-to-board assemblies
• General electronic equipment requiring reliable signal transmission

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, contact plating thickness, and termination type. Ensure compatibility with the corresponding socket series. Confirm RoHS compliance status and material specifications match project requirements before finalizing procurement orders.

Selection Notes

Select this component for applications requiring a compact, right-angle male header with positive locking capabilities. Consider the 2.00mm pitch and two-position configuration for space-constrained designs. Evaluate the operating temperature range and current carrying capacity against system electrical demands to ensure long-term reliability under thermal stress conditions.

Part Context

This part belongs to the Datamate L-Tek series, characterized by its robust mechanical design and high-density connectivity options. The series is widely utilized in industrial and consumer electronics where vibration resistance and secure mating are critical. The M80-8420242 specifically addresses needs for angled mounting configurations within this family.

Replacement Considerations

Direct substitutes include other Harwin Datamate L-Tek headers with identical 2-position, right-angle, and latched specifications. Verify that any alternative maintains the same 2.00mm pitch and contact material composition to ensure mechanical and electrical compatibility with existing mating connectors.
