Product Detailed Parameters
- Description：CONN HEADER R/A 5POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.156" (3.96mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

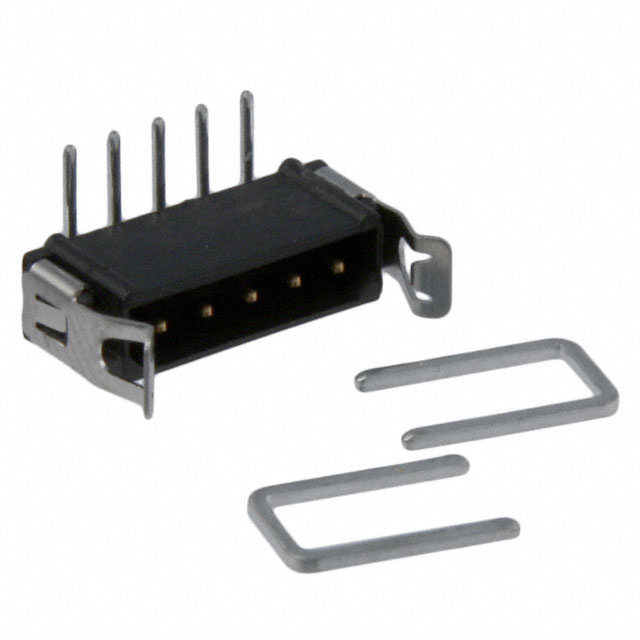

The M80-8420542 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 5-position single-row configuration with a 2.00mm pitch. Designed for through-hole mounting, this right-angle male pin connector utilizes phosphor bronze contacts with gold plating for mating surfaces and tin termination. The housing is constructed from black, glass-filled PPS rated UL94 V-0. It operates within a temperature range of -55°C to 125°C, supporting up to 2.2A at 120V.
Feature Summary
- Datamate L-Tek series design with four-wall shielding for robust signal integrity
- Integrated stress relief clamp mechanism for enhanced cable retention
- Latching bracket system ensures secure mechanical connection between mated pairs
Applications
- Industrial control panel interconnections
- Automotive electronic module linking
- General-purpose board-to-board or board-to-wire harness connections
Procurement Notes
Verify the specific suffix code against the manufacturer's current datasheet to confirm contact plating thickness and termination material specifications. Ensure compatibility with mating socket connectors within the same Datamate L-Tek family. Confirm that the right-angle orientation matches the PCB layout requirements before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, shielded header is required for high-density applications. The L-Tek variant offers improved durability compared to standard versions. Consider the 2.00mm pitch constraint and verify that the 2.2A current rating meets the circuit load requirements. Ensure the through-hole footprint aligns with the manufacturing capabilities of the target PCB assembly process.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for its ruggedized design suitable for harsh environments. The M80-842 prefix indicates a 5-position male header in the L-Tek series. This specific model represents a standard industry solution for reliable electrical connectivity in compact form factors.
Replacement Considerations
Compatible mating sockets include M80-8400542 and M80-8400545. Verify that any substitute maintains the identical 2.00mm pitch and right-angle orientation to ensure physical fitment.
