M80-8430242

Overview

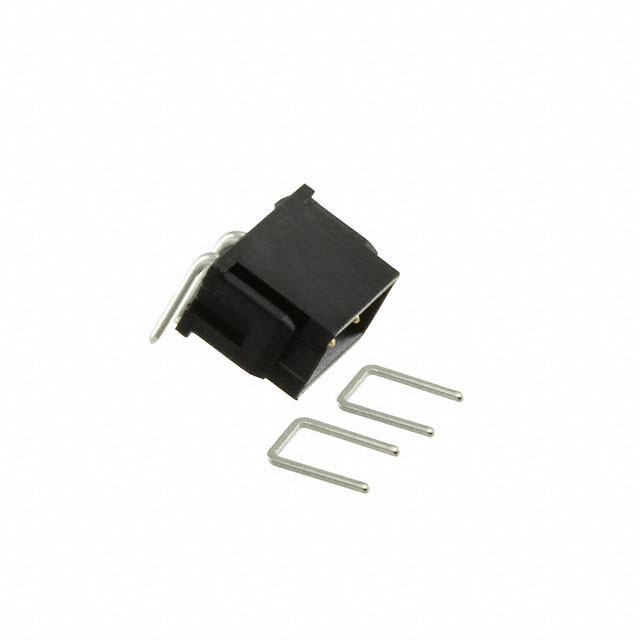

The M80-8430242 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a single row with two positions and a 2.00mm pitch. Designed for through-hole right-angle mounting, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin on the posts. The housing is constructed from black PPS reinforced with glass fiber, rated UL94 V-0. Electrical ratings include 120V and 2.2A, with an operating temperature range of -55°C to 125°C.

Feature Summary

• Provides high mechanical resilience with 100G shock, 40G bump, and 10G vibration resistance capabilities.
• Features a right-angle through-board design with 3mm PCB termination height for compact board-to-board or cable connections.
• Incorporates a shrouded four-wall shielded housing to ensure proper alignment and protection during mating.

Applications

• Board-to-board interconnections in industrial control systems
• Cable-to-board assemblies requiring right-angle routing
• Harsh environment electronics demanding high shock and vibration resistance

Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm contact finish thickness and housing latch configurations. Ensure the procurement specification matches the required right-angle orientation and single-row configuration. Cross-reference the UL94 V-0 rating and material composition with project environmental requirements before finalizing orders.

Selection Notes

Select this component when a low-profile, right-angle male header is required for space-constrained applications. The 2.00mm pitch allows for dense circuit layouts while maintaining reliable signal integrity. Consider the 2.2A current rating and 120V voltage limit to ensure compatibility with the target circuit's electrical demands and thermal management strategy.

Part Context

This part belongs to the Datamate L-Tek series, known for robust performance in demanding environments. The M80-843 base number indicates a standard male header configuration within the Harwin portfolio. It is designed to mate with corresponding female sockets in the same series to form secure interconnect solutions.

Replacement Considerations

Compatible substitutes include M80-8430542 and M80-8430545, which share the Datamate L-Tek series characteristics. Verify pin count and orientation differences when evaluating these alternatives for direct replacement scenarios.

FAQ

Does the M80-8430242 include latches?

No, the connector housing is not fitted with latches.

What is the contact material used in this connector?

The contacts are made of phosphor bronze with gold plating on the mating interface.
