M80-8430442

Overview

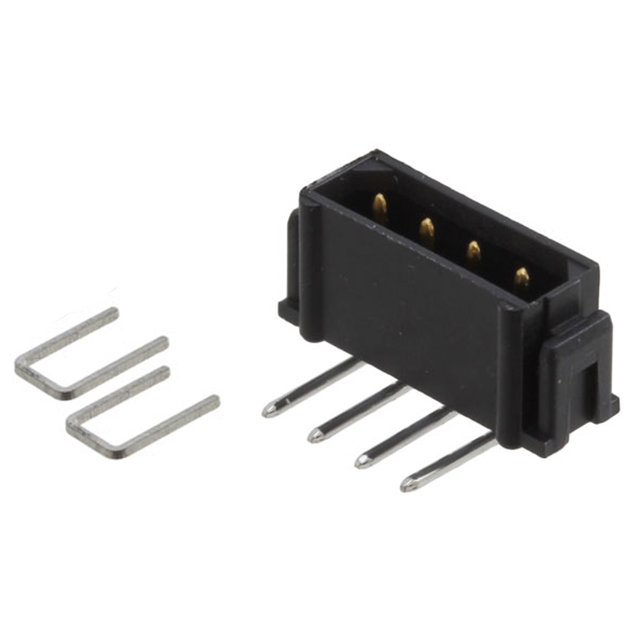

The M80-8430442 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a right-angle, through-hole mounting style with 4 positions in a single row. The connector utilizes male pins with a 2.00mm pitch and offers shrouding for four-wall protection. Rated for 120V and 3A, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black Polyphenylene Sulfide (PPS) reinforced with glass fiber, meeting UL94 V-0 flammability standards. Pins are made of phosphor bronze with tin plating.

Feature Summary

• Datamate L-Tek series design provides robust mechanical locking via integrated latches.
• Four-wall shrouded housing ensures precise alignment and environmental protection during mating.
• Right-angle termination facilitates compact board-to-board or cable connections.
• High-temperature resistant PPS insulation supports reliable operation in demanding thermal environments.

Applications

• Industrial control systems requiring secure interconnects
• Automotive electronics applications
• General purpose PCB interconnections

Procurement Notes

Verify the specific suffix '442' confirms tin-plated contacts rather than gold variants when sourcing replacements. Confirm that the right-angle orientation matches the target PCB layout constraints. Ensure compatibility with the corresponding female socket series for proper latch engagement. Check current manufacturing status as product availability may vary.

Selection Notes

Select this component for applications needing a low-profile, right-angle male header with positive locking mechanisms. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the 3A current rating for power distribution needs. The shrouded design prevents misalignment during assembly, making it suitable for automated placement processes.

Part Context

This part belongs to the Datamate L-Tek family, known for its high-density interconnect capabilities. It serves as a male header counterpart to female sockets within the same system. The L-Tek variant specifically emphasizes mechanical stability through its unique latch design compared to standard headers.

Replacement Considerations

• M80-8430445

FAQ

What is the contact material for the M80-8430442?

The contacts are made of phosphor bronze with a tin plating finish.

Does this connector include a locking mechanism?

Yes, it features an integrated latch system for secure mating with compatible sockets.
