M80-8460342

Overview

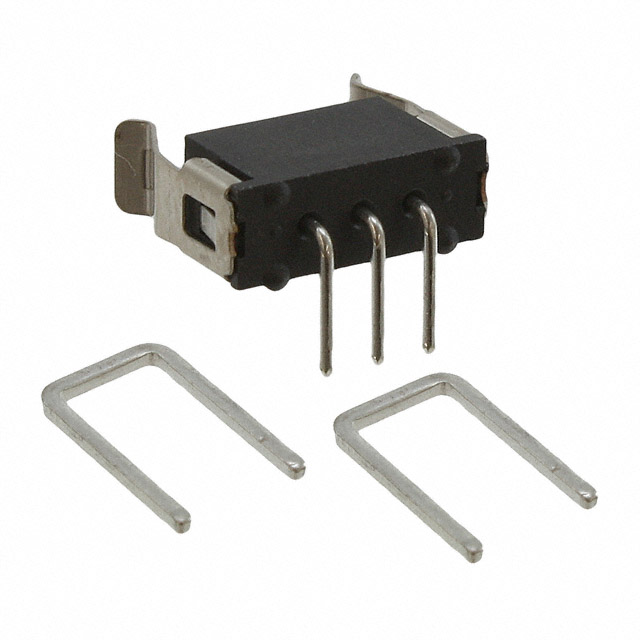

The M80-8460342 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 2 mm pitch and a 1x3 pin configuration with male pins. The component utilizes a right-angle through-hole termination style for board-to-board or cable applications. Electrical ratings include a voltage of 120V and a current of 3A. The housing is constructed from black Polyphenylene Sulfide (PPS) with UL94 V-0 flammability rating, while contacts are made of phosphor bronze with gold plating.

Feature Summary

• Datamate L-Tek series design providing high-density interconnect capabilities
• Shrouded four-wall construction ensuring correct mating alignment
• Right-angle mounting profile optimized for space-constrained PCB layouts

Applications

• Industrial control systems requiring reliable signal transmission
• Automotive electronics utilizing standard automotive connectors
• General purpose electronic assemblies needing secure board connections

Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact count and tail length specifications. Ensure that the selected variant matches the required mechanical orientation and termination type for the target application. Cross-reference datasheet parameters to validate environmental operating ranges before procurement.

Selection Notes

Select this component when a low-profile, right-angle male header is required for 2mm pitch systems. Consider the shrouded design for improved mating reliability in dense environments. Evaluate the thermal and electrical ratings against system requirements to ensure compatibility with the intended load conditions.

Part Context

This part belongs to the Datamate L-Tek family, known for robust performance in demanding environments. The series offers various configurations including different row counts and tail lengths. This specific model represents a single-row option within the broader product ecosystem designed for versatile connectivity solutions.

Replacement Considerations

Compatible counterparts include other Harwin Datamate L-Tek headers with matching 2mm pitch and right-angle form factors. Verify pin count and shrouding requirements when evaluating alternative sources to maintain mechanical and electrical integrity.
