M80-8460442

Overview

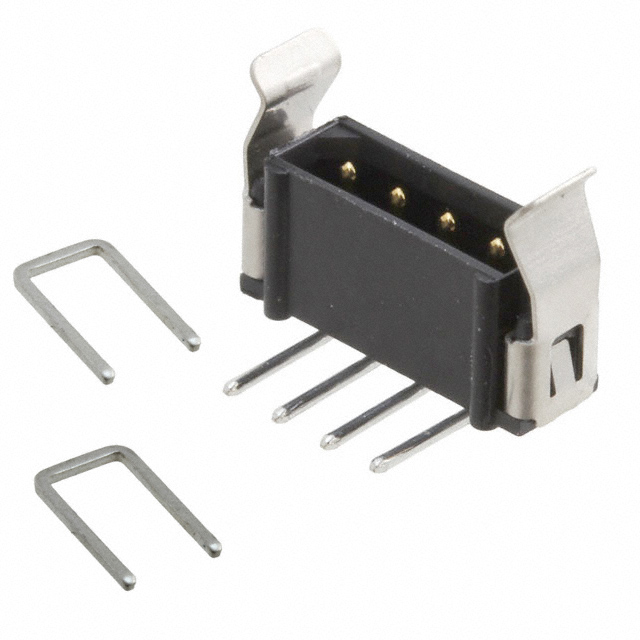

The M80-8460442 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 4-position, 2-row configuration with a 2.00mm pitch and row spacing. Designed for surface mount or through-hole right-angle installation, it utilizes male pins made of phosphor bronze with gold plating. The housing is constructed from black PPS material rated UL94 V-0. Electrical ratings include 120V and 3A current capacity, operating within a temperature range of -55°C to 125°C.

Feature Summary

• Shrouded design provides four-wall protection for pin alignment
• Right-angle mounting orientation facilitates compact board layouts
• Gold-plated contacts ensure reliable signal transmission

Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic equipment

Procurement Notes

Verify the specific datasheet version for the M80-8460442 to confirm exact termination style (SMD vs TH) as sources vary. Ensure compatibility with mating receptacles in the same Datamate L-Tek series. Check for RoHS compliance documentation prior to final procurement decisions.

Selection Notes

Select this component when a low-profile, right-angle connection is required for 4-pin signals. The 2.00mm pitch allows for dense circuit arrangements. Consider the shrouded housing for improved insertion safety compared to open headers.

Part Context

This part belongs to the Datamate L-Tek family, known for high-density rectangular connectors. The M80-8460442 specifically addresses needs for small form-factor applications requiring robust mechanical locking and reliable electrical performance in constrained spaces.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek headers with identical 4-position, 2-row, 2.00mm pitch specifications. Verify that mating receptacles match the pin count and series type before substitution.
