M80-8500445

Overview

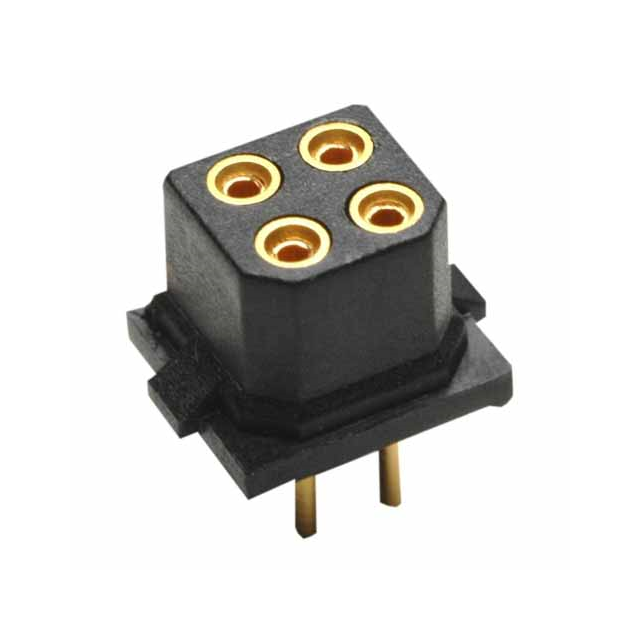

The M80-8500445 is a Datamate L-Tek series connector manufactured by Harwin. It is classified as a Power to the Board receptacle with four female sockets. The component utilizes a 2 mm pitch and features two rows of contacts. Designed for through-hole mounting, it employs a crimp termination method suitable for 24-28 AWG wire gauges. The housing is constructed from black polyamide (PA) material. Electrical specifications include a current rating of 3 A and an insulation resistance of 100 MOhms. The unit operates within a temperature range of -55 C to +125 C.

Feature Summary

• Features a high-reliability four-finger beryllium copper contact structure designed to maintain connection integrity under vibration and shock.
• Utilizes a straight cable mount configuration with a free-hanging installation style for flexible wiring applications.
• Constructed with a durable polyamide housing that provides robust mechanical support and electrical insulation.

Applications

• Industrial control systems requiring secure power distribution
• Automotive electronics harnesses subject to vibration
• Consumer appliances needing reliable board-to-wire connections

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and any recent design changes. Ensure the mating counterpart matches the Datamate L-Tek series specifications. Confirm that the crimping tools used are compatible with the 24-28 AWG wire gauge range specified for this connector type.

Selection Notes

Select this component when a low-profile, high-density power connection is required for smaller gauge wires. The 2 mm pitch allows for compact circuit board layouts compared to larger pitch alternatives. Consider the 3 A current rating to ensure adequate capacity for the intended load without overheating the contacts.

Part Context

This part belongs to the Datamate L-Tek family, which is engineered for harsh environments. The series emphasizes durability and resistance to environmental stressors. The M80-8500445 specifically addresses needs for compact, reliable power delivery in space-constrained electronic assemblies where standard connectors may be too bulky.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility with existing mating hardware before attempting substitution with other Harwin series components.
