Product Detailed Parameters
- Description：CONN RCPT 6POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

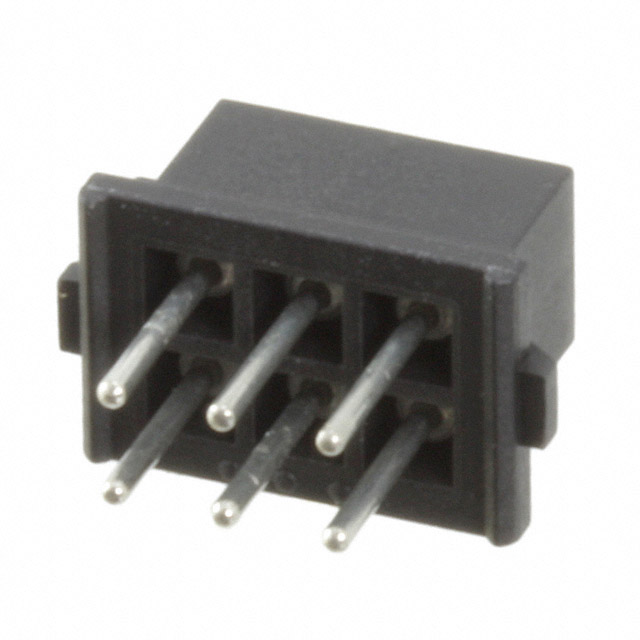

The Harwin M80-8500642 is a 6-position receptacle connector from the Datamate L-Tek series, designed for board-to-board or cable interconnection. It features a 2.00mm (0.079") pitch and a dual-row configuration with female sockets. The connector utilizes through-hole solder termination and includes locking latches for secure mating. Rated at 120V and 3A per contact, it operates within a temperature range of -55°C to +125°C. The housing is black nylon, and contacts are gold-plated beryllium copper.
Feature Summary
- Dual-row female socket receptacle design for reliable board-to-board or cable connections
- Integrated locking latch mechanism ensures secure mating retention
- Through-hole solder termination for robust PCB mounting
- Gold-plated beryllium copper contacts for enhanced conductivity and corrosion resistance
Applications
- Automotive electronic systems
- General industrial equipment
- Consumer electronics assemblies
Procurement Notes
Verify the specific datasheet version to confirm current manufacturing status and compliance certifications. Ensure compatibility with mating male headers regarding latch type and pin count. Cross-reference official Harwin documentation for precise mechanical dimensions and thermal specifications before finalizing procurement.
Selection Notes
Select this component when a compact, dual-row female connector with integrated latching is required. It is suitable for applications needing 120V/3A ratings per contact in space-constrained environments. Consider the through-hole mounting style and 2.00mm pitch requirements during circuit board layout planning.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for high-density interconnect solutions. The M80-8500642 specifically offers a 6-position variant within this series, providing a balance between connectivity density and mechanical stability for various electronic assembly needs.
Replacement Considerations
- M80-8500642
FAQ
What is the current rating per contact?
Each contact is rated for 3A.
Does this connector include a locking mechanism?
Yes, it features integrated locking latches for secure connection.
