M80-8500842

Overview

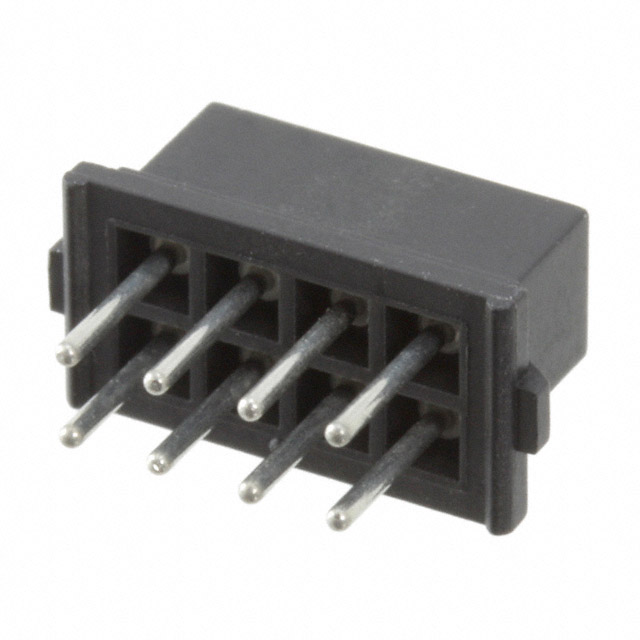

The Harwin M80-8500842 is a Datamate L-Tek series header connector featuring a 2.00mm pitch and eight positions arranged in a dual-in-line configuration. Designed for through-hole mounting, this right-angle component utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. It operates within a temperature range of -55°C to 125°C and supports a rated voltage of 120V. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, meeting UL94 V-0 flammability standards. This robust design ensures durability in demanding environments.

Feature Summary

• High-reliability four-finger beryllium copper alloy contacts ensure connection integrity under shock and vibration.
• Durable PPS housing provides thermal stability and meets strict flammability requirements.
• Right-angle through-hole mounting facilitates efficient board-to-board or cable connections.

Applications

• Industrial control systems requiring high reliability
• Automotive electronics operating in harsh environments
• Medical equipment demanding stable signal transmission

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating thickness and housing color variations. Ensure compatibility with mating sockets from the same Datamate L-Tek family. Confirm that the right-angle orientation matches the PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this model when a compact, high-density interconnect solution is required for space-constrained designs. The 2.00mm pitch allows for higher pin counts compared to larger pitches while maintaining mechanical stability. Consider the right-angle form factor for vertical integration needs within tight enclosure dimensions.

Part Context

As part of the Datamate L-Tek family, the M80-8500842 represents Harwin's focus on high-performance interconnects. This series is engineered for safety-critical applications where failure is not an option. The component integrates advanced contact technology with robust materials to withstand extreme mechanical and thermal stresses throughout its operational lifecycle.

Replacement Considerations

M80-8500845
