M80-8501242

Overview

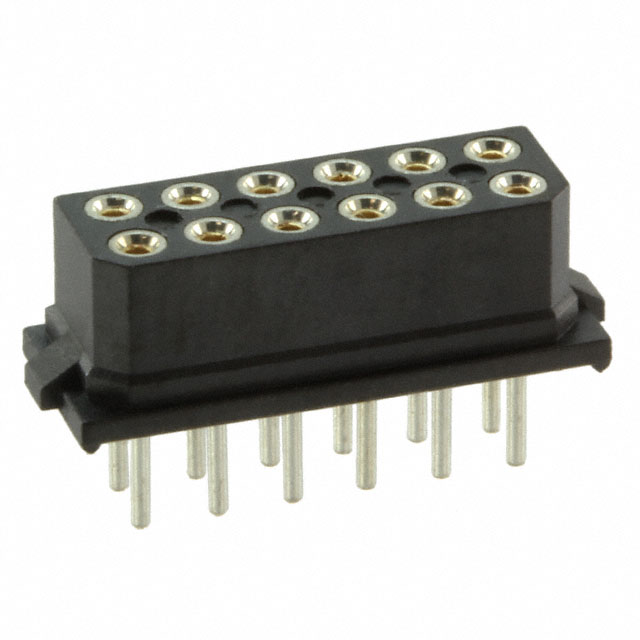

The Harwin M80-8501242 is a Datamate L-Tek series PCB receptacle featuring a 2 mm pitch and 12 contacts arranged in two rows. Designed for through-hole mounting, this vertical connector supports board-to-board and wire-to-board systems with a 120V rating. The housing utilizes PPS material, while the female sockets are gold-plated beryllium copper contacts. It operates within a temperature range of -55°C to 125°C and provides reliable performance in demanding environments.

Feature Summary

• High-reliability four-finger beryllium copper contact design ensures connection integrity under vibration and shock.
• Datamate L-Tek system offers durable performance with high mating cycle endurance.
• Vertical through-hole construction facilitates standard PCB assembly processes.

Applications

• Industrial control systems requiring robust connectivity
• Automotive electronics subject to high vibration
• Aerospace instrumentation demanding environmental stability

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, orientation, and locking mechanism variations. Ensure compatibility with corresponding male headers regarding pitch and housing dimensions. Cross-reference RoHS compliance status with current manufacturer declarations prior to procurement.

Selection Notes

Select this component when a vertical, through-hole female socket is required for 2mm pitch applications. Confirm that the 12-position configuration matches the circuit design requirements. Evaluate the need for latching mechanisms if secure mating is critical for the specific application environment.

Part Context

This part belongs to the Datamate L-Tek family, known for compact size and high reliability. It serves as a complementary receptacle to male headers within the same series, enabling versatile interconnection solutions for space-constrained electronic designs requiring durable board-to-board connections.

Replacement Considerations

Direct substitutes include other Harwin M80-series receptacles with matching 2mm pitch and 12 positions. Verify electrical ratings and mechanical dimensions before substituting with generic equivalents to ensure interface compatibility.
