M80-8501245R

Overview

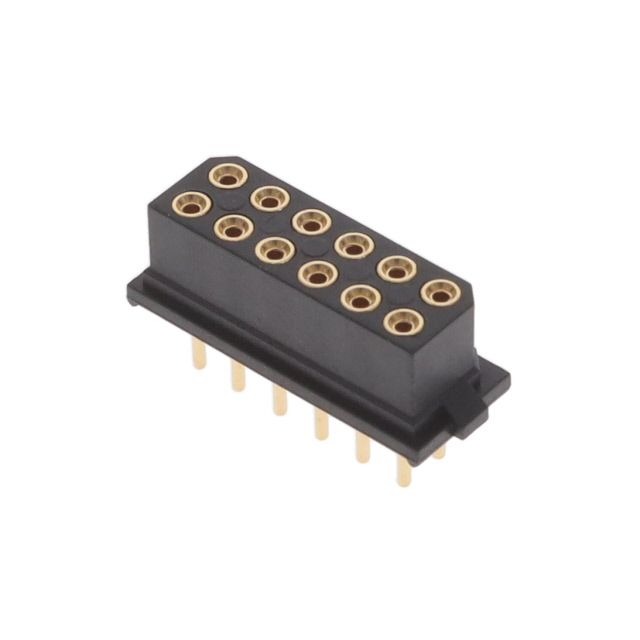

The Harwin M80-8501245R is a 12-position receptacle connector from the Datamate L-Tek series, featuring a 2.00mm pitch and dual in-line (6+6) configuration. Designed for through-hole mounting with PC tails, it utilizes gold-plated beryllium copper contacts to ensure reliable signal transmission. The connector supports board-to-board or cable interconnects within a temperature range of -55°C to +125°C and operates at voltages up to 120V.

Feature Summary

• Dual in-line 6+6 layout enables compact PCB-to-wire or board-to-board integration
• Gold-plated beryllium copper contacts provide durable conductivity and corrosion resistance
• Through-hole PC tail termination ensures secure mechanical fixation on printed circuit boards

Applications

• Automotive electronic systems requiring robust interconnects
• Industrial control modules utilizing board-to-board connections
• Cable assembly applications needing reliable wire-to-board interfaces

Procurement Notes

Verify that the specific suffix 'R' corresponds to the tape-and-reel packaging format required for automated surface mount or high-volume insertion processes. Confirm that the 350/R layout family designation matches the intended PCB footprint and mating header specifications to ensure mechanical compatibility during procurement.

Selection Notes

Select this component when a 12-position, 2mm pitch female connector is required for through-hole implementation. Ensure the application environment remains within the specified -55°C to +125°C operating range. Verify that the mating male counterpart belongs to the same Datamate L-Tek series to guarantee proper alignment and contact engagement.

Part Context

This part belongs to the Harwin Datamate L-Tek family, known for high-density interconnect solutions. The M80-8501245R specifically addresses needs for reliable, low-profile connections in space-constrained environments. Its design emphasizes durability and consistent electrical performance across various industrial and automotive sectors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must verify pinout compatibility and mechanical dimensions before considering alternative suppliers or generic equivalents.
