M80-8501445

Overview

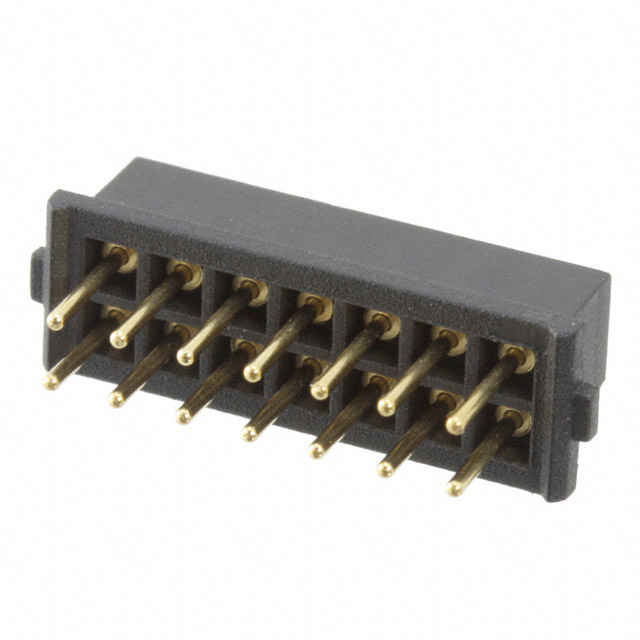

The Harwin M80-8501445 is a 14-position dual in-line receptacle connector from the Datamate L-Tek series. It features a 2 mm pitch and two rows of gold-plated beryllium copper female sockets. Designed for through-hole mounting with straight orientation, it utilizes solder pin termination. The unit operates within a temperature range of -55°C to +125°C, supporting up to 3 A current and 120 V voltage ratings.

Feature Summary

• Datamate L-Tek series design enables compact board-to-board or wire-to-board interconnections
• Gold-plated beryllium copper contacts ensure reliable signal transmission and corrosion resistance
• Through-hole vertical mounting provides stable mechanical fixation on printed circuit boards

Applications

• Compact electronic device interconnects
• Industrial control system wiring
• Consumer electronics assembly

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official datasheets. Confirm that the received items match the specified 14-position configuration and through-hole termination style. Ensure compliance with RoHS directives as indicated in the product documentation before integration into manufacturing processes.

Selection Notes

Select this component when a low-profile, high-density connection is required for space-constrained designs. The 2 mm pitch offers a balance between connectivity density and ease of assembly. Consider the specific current and voltage requirements against the rated limits to ensure operational safety and long-term reliability in the target application environment.

Part Context

This receptacle belongs to the Datamate L-Tek family, known for its slim profile and robust performance. It pairs with corresponding male headers to form secure mating connections. The series supports various mounting styles and contact configurations, catering to diverse industrial and commercial electronic needs while maintaining consistent electrical characteristics.

Replacement Considerations

Consult official substitution lists for compatible alternatives within the same connector family. Verify that any substitute maintains identical pitch, row count, and mounting specifications to ensure mechanical and electrical compatibility without redesigning the host PCB layout.
