M80-8510645

Overview

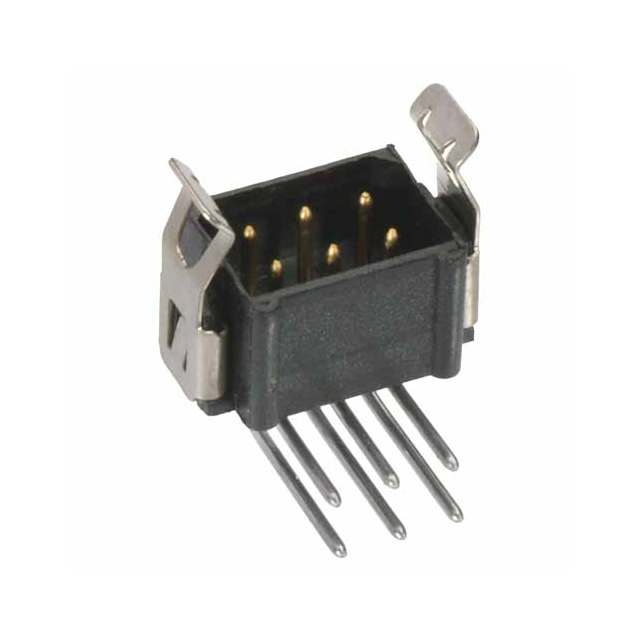

The M80-8510645 is a Datamate L-Tek male header connector manufactured by Harwin. It features a 2-row, 6-position (3+3) configuration with a 2 mm pitch. Designed for through-board mounting, it utilizes right-angle horizontal orientation with 3 mm termination pins. The contacts are made of beryllium copper with gold plating, rated for 3 A current and 120 V voltage. Operating temperatures range from -55°C to +125°C.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity under vibration and shock.
• Right-angle horizontal design facilitates compact board-to-board or wire-to-board interconnections.
• Gold-plated contacts provide durable performance in harsh environments.

Applications

• Board-to-board connections requiring high reliability
• Wire-to-board interconnections in industrial equipment
• Applications subject to high vibration, shock, or acceleration

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, row configuration, and termination style. Ensure compatibility with mating female connectors within the Datamate L-Tek series. Confirm that the right-angle horizontal orientation meets the mechanical constraints of the target assembly.

Selection Notes

Select this component when a low-profile, right-angle male header is required for robust signal or power transmission. The 2 mm pitch allows for dense packing while maintaining adequate spacing. Consider the 3 A rating and 120 V limit for electrical compliance. The through-board termination requires appropriate PCB hole drilling specifications.

Part Context

This part belongs to the Datamate L-Tek family, known for durability in demanding conditions. It complements female receptacles and cable kits within the same series. The design supports repeated mating cycles without significant performance degradation, making it suitable for safety-critical applications.

Replacement Considerations

Direct substitutes must match the 2 mm pitch, 6-position count, right-angle orientation, and through-board termination. Verify that alternative components maintain the same current and voltage ratings. Cross-reference with other Harwin M80 series variants if exact matches are unavailable.

FAQ

What is the contact material for the M80-8510645?

The contacts are made of beryllium copper with gold plating.

Does this connector support wire-to-board connections?

Yes, the Datamate L-Tek series supports both board-to-board and wire-to-board applications.
