M80-8513442

Overview

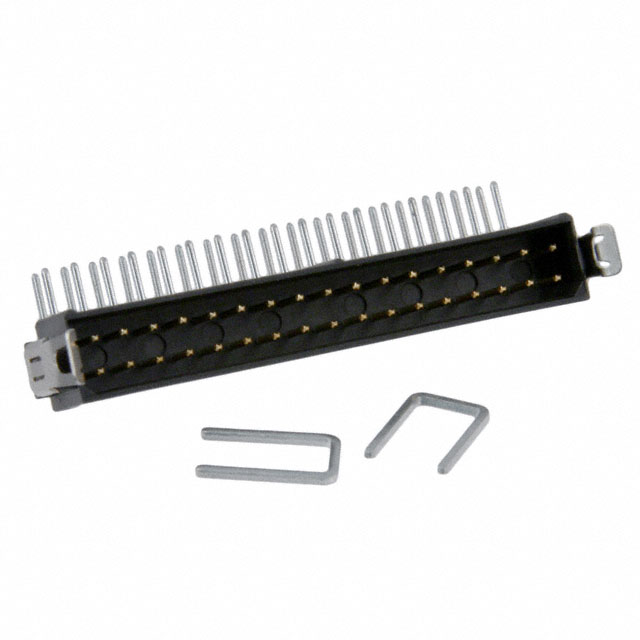

The M80-8513442 is a Datamate L-Tek header manufactured by Harwin Inc. It features a 34-position configuration with a 2 mm pitch and two rows. The connector utilizes female contacts with tin/lead plating. Designed for through-hole right-angle mounting, it supports a voltage rating of 800V. The contact finish thickness is specified at 118.1µin (3.00µm). This component belongs to the M80 series rectangular connectors.

Feature Summary

• Datamate L-Tek series design ensures high reliability in harsh environments
• Four-finger beryllium copper contacts maintain connection integrity under vibration and shock
• High mating cycle durability without performance degradation

Applications

• Safety-critical applications requiring robust connections
• Environments subject to high load vibrations, shocks, and acceleration
• Harsh operational conditions demanding long-term connector stability

Procurement Notes

Verify the specific contact plating composition against official datasheets, as some sources indicate tin/lead while others may list tin. Confirm the right-angle orientation and through-hole termination type match the target PCB layout requirements. Ensure compatibility with the corresponding Datamate housing or mating header components for proper assembly.

Selection Notes

Select this part when a 34-position female header with right-angle through-hole mounting is required. The 2 mm pitch and 800V rating suit high-density board-to-board or wire-to-board interfaces. Consider the four-finger contact design for applications involving significant mechanical stress or frequent mating cycles.

Part Context

This component is part of the Harwin M80 series, specifically the Datamate L-Tek line. The series is engineered for safety-critical systems where reliability under extreme mechanical stress is paramount. The L-Tek variant offers versatile mounting options including latched and unlatched configurations.

Replacement Considerations

Cross-reference with other M80-851 series variants for position count and orientation differences. Verify that substitute parts maintain the same 2 mm pitch and female contact type to ensure mechanical and electrical compatibility within the existing system architecture.
