M80-8530642

Overview

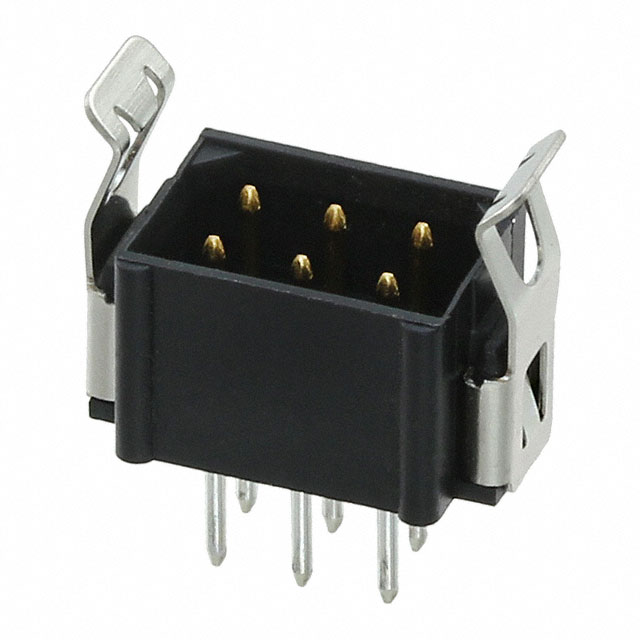

The M80-8530642 is a 6-position male PCB header from the Datamate L-Tek series. It features a 2mm pitch, double-row configuration, and vertical orientation for through-hole mounting. The connector utilizes black UL94V-0 polyamide housing with gold-plated phosphor bronze contacts. Rated for 2.2A per contact and 800V, it operates within -55°C to +125°C. Mated stacking heights include 7.23mm, 7.85mm, 10.2mm, and 13.51mm.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity in harsh environments.
• Latched design provides secure board-to-board or wire-to-board interconnections.
• Gold-plated phosphor bronze contacts offer corrosion resistance and low contact resistance.

Applications

• High-packing-density low-voltage interconnections
• Applications requiring high reliability under shock and vibration
• Board-to-board connections in industrial equipment

Procurement Notes

Verify the specific datasheet version for the M80-8530642 to confirm current RoHS compliance status and detailed mechanical drawings. Ensure mating components match the specified stacking height options of 7.23mm, 7.85mm, 10.2mm, or 13.51mm. Cross-reference the 800V rating against system requirements to guarantee safety margins are met during procurement.

Selection Notes

Select this component when a latched, high-reliability 6-pin vertical header is required. The Datamate L-Tek series is suitable for applications demanding robust performance under mechanical stress. Consider the 2mm pitch and double-row layout for space-constrained designs needing secure locking mechanisms compared to non-latched alternatives.

Part Context

This part belongs to the Datamate L-Tek family, known for durability in severe conditions. It complements other Harwin connectors by offering a latched solution for reliable signal and power transmission. The series supports various pin counts and orientations, making it versatile for complex electronic assemblies requiring high cycle life and environmental resistance.

Replacement Considerations

Direct substitutes must match the 6-position, 2mm pitch, vertical, latched specification. Verify that alternative headers maintain the 800V rating and 2.2A current capacity. Ensure housing material compatibility and identical stacking height profiles to preserve mechanical fit and electrical performance in existing designs.

FAQ

What is the voltage rating of the M80-8530642?

The M80-8530642 has a voltage rating of 800V.

Does the M80-8530642 feature a latch?

Yes, the M80-8530642 is a latched assembly designed for secure connections.
