Product Detailed Parameters
- Description：CONN HEADER VERT 16POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview

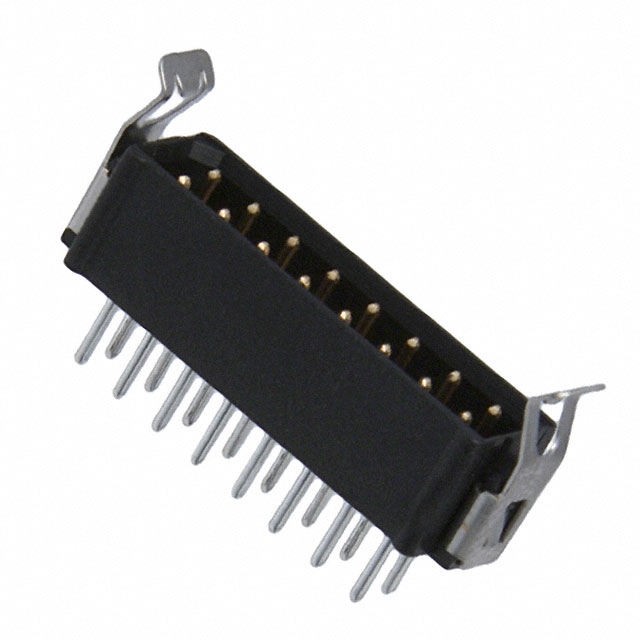

The Harwin M80-8531642 is a Datamate L-Tek series PCB header featuring 16 positions arranged in a dual inline (8+8) configuration. It utilizes male pin contacts with phosphor bronze material and gold plating for mating surfaces, supporting a current rating of 3A and a voltage rating of 120V. The connector employs a 2mm pitch and is designed for through-hole installation on printed circuit boards. Constructed with a black PPS housing, it operates within a temperature range of -55°C to +125°C. This straight, unlatched design facilitates board-to-board and wire-to-board connections.
Feature Summary
- Gold-plated male pin contacts ensure reliable electrical performance and corrosion resistance.
- Polyphenylene sulfide (PPS) housing provides high thermal stability and mechanical strength.
- Dual row layout supports dense interconnection requirements in compact spaces.
Applications
- Board-to-board interconnections
- Wire-to-board assemblies
- Industrial control systems
Procurement Notes
Verify the specific suffix '42' against official datasheets to confirm contact plating and latch status. Ensure compatibility with mating sockets from the same Datamate L-Tek family. Confirm that the through-hole termination method aligns with your PCB fabrication capabilities and soldering profiles.
Selection Notes
Select this component when a 16-position, 2mm pitch male header is required for rigid PCB mounting. Consider the unlatched design for applications where mechanical retention is provided by mating connectors or secondary locking mechanisms. Evaluate the 3A current rating against peak load requirements to ensure adequate thermal management.
Part Context
This part belongs to the Datamate L-Tek family, known for high-reliability interconnect solutions. It complements female sockets and cable kits within the same ecosystem. The series is engineered for demanding environments requiring robust mechanical and electrical performance across wide temperature ranges.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin Datamate L-Tek headers only if they match the exact 16-position, 2mm pitch, and male contact specifications.
FAQ
What is the insulation material used for the housing?
The housing is made from Polyphenylene Sulfide (PPS).
Does this connector include a latching mechanism?
No, this specific part number is an unlatched design.
