M80-8541242

Overview

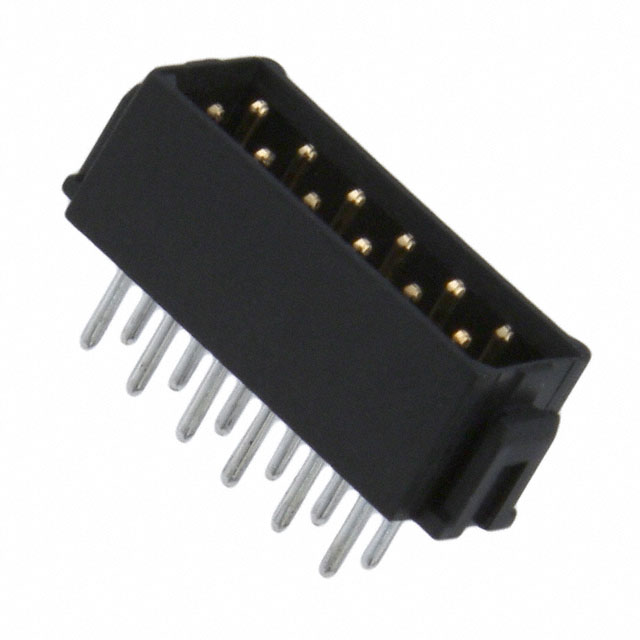

The Harwin M80-8541242 is a Datamate L-Tek series pin header designed for board-to-board and wire-to-board interconnections. It features a 2 mm pitch with 12 positions arranged in a dual-row configuration. The connector utilizes vertical mounting with through-hole solder termination. Contact materials include tin/lead plating, supporting a current rating of 3 A. The housing is constructed from black Polyphenylene Sulfide (PPS) with a latched design.

Feature Summary

• Vertical orientation with integrated latch mechanism
• Dual-row shrouded housing for secure mating
• Through-hole solder pin termination

Applications

• Board-to-board interconnects
• Wire-to-board connections
• Industrial control systems

Procurement Notes

Verify the specific contact plating specification against the official datasheet, as variations exist within the L-Tek series. Confirm RoHS compliance status directly with the manufacturer or authorized distributors. Ensure the vertical latch variant matches the mechanical requirements of the target assembly.

Selection Notes

Select this component for applications requiring a robust, latched vertical connection with a 2 mm pitch. The 12-position dual-row layout suits compact designs needing reliable signal or power transmission. Verify that the through-hole footprint aligns with the PCB design rules and that the operating temperature range meets system constraints.

Part Context

This part belongs to the Datamate L-Tek family, known for high-density connectivity solutions. The M80 prefix indicates a standard connector series from Harwin. The L-Tek line emphasizes durability and ease of use in industrial environments, offering various row counts and termination styles.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
