M80-8630642

Overview

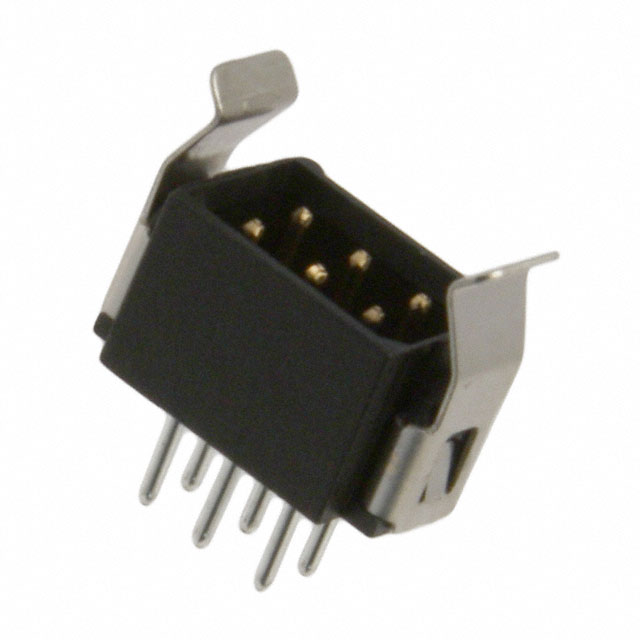

The M80-8630642 is a male header connector from the Harwin Datamate L-Tek series, featuring a 2.00mm pitch and double-row configuration with six positions. Designed for through-hole vertical mounting, it utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The connector supports a current rating of 2.2A and voltage ratings up to 120V or 800V depending on application context. It offers multiple mated stacking heights including 7.23mm, 7.85mm, 10.2mm, and 13.51mm. Constructed with black polyphenylene sulfide insulation, it meets UL94 V-0 flammability standards and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Fully shrouded polarized mouldings prevent misalignment during mating
• Double-row vertical design enables high-density board-to-board connections
• Gold-plated phosphor bronze contacts provide durable electrical performance
• Compatible with specific female connectors in the Datamate L-Tek family

Applications

• Board-to-board interconnects
• Wire-to-board assemblies
• Industrial control systems
• Automotive electronics

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the part number matches the specific L-Tek series requirements. Ensure compatibility with intended mating female connectors before integration. Check for obsolescence status as this item may be discontinued. Validate environmental compliance certifications required for the target application.

Selection Notes

Select this connector when a double-row male header with 2.00mm pitch is required. Consider the available stacking heights to ensure proper clearance for the assembly. Verify that the current and voltage ratings meet circuit demands. Ensure the through-hole vertical mounting style fits the PCB layout constraints. Match with compatible female receptacles from the same Datamate L-Tek series.

Part Context

This component belongs to the Datamate L-Tek series by Harwin Inc., known for robust rectangular connectors. The series features fully shrouded contacts and polarized housings for secure mating. It is designed for demanding environments requiring reliable interconnection solutions. The M80-8630642 specifically serves as a male pin header variant within this ecosystem.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. This component is listed as obsolete in some distributor records. Evaluate alternative headers from the same Datamate L-Tek series if direct replacement is necessary.
