M80-8631242

Overview

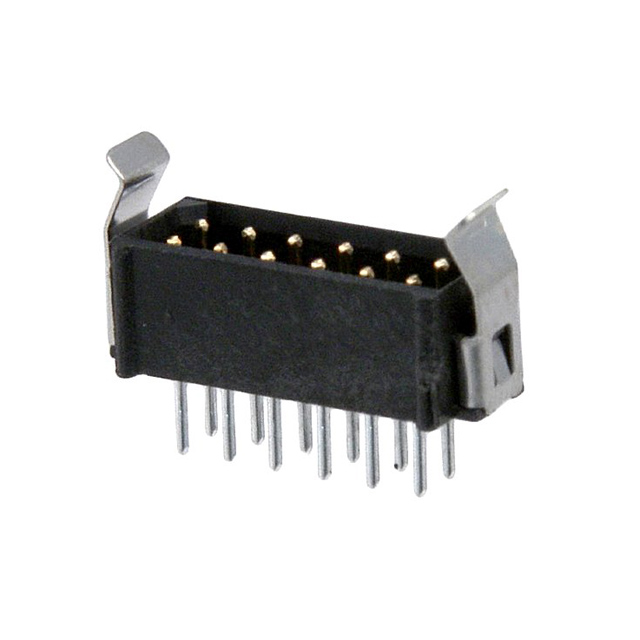

The Harwin M80-8631242 is a 12-position (6+6) double-row PCB header from the Datamate L-Tek series. It features a 2mm pitch, straight orientation, and through-hole termination. Rated for 120V and 3A, it utilizes phosphor bronze contacts with gold plating and a PPS housing. Designed for board-to-board and wire-to-board applications, it includes a shrouded cover.

Feature Summary

• Shrouded design ensures correct mating alignment
• Gold-plated phosphor bronze contacts provide reliable conductivity
• Polyphenylene sulfide housing offers thermal stability

Applications

• Board-to-board interconnects
• Wire-to-board connections
• Industrial control systems

Procurement Notes

Verify the specific contact finish and locking mechanism against official datasheets, as distributor listings may vary. Confirm that the part number corresponds to the friction latch variant rather than screw-lock versions. Ensure compatibility with mating sockets regarding current ratings and temperature limits before procurement.

Selection Notes

Select this component for high-density applications requiring robust mechanical retention. The 2mm pitch allows for compact layouts while maintaining 3A current capacity. Consider the shrouded structure for error-proofing in automated assembly processes where precise alignment is critical.

Part Context

This connector belongs to the Datamate L-Tek family, known for its versatility in mixed signal and power applications. The M80 prefix indicates a standard header configuration within Harwin's extensive portfolio of modular interconnect solutions designed for demanding environments.

Replacement Considerations

• M80-8531242

FAQ

What is the rated current for this connector?

The rated current is 3A per contact.

Does this part include a locking mechanism?

Yes, it features a friction latch system for secure mating.
