M80-8631442

Overview

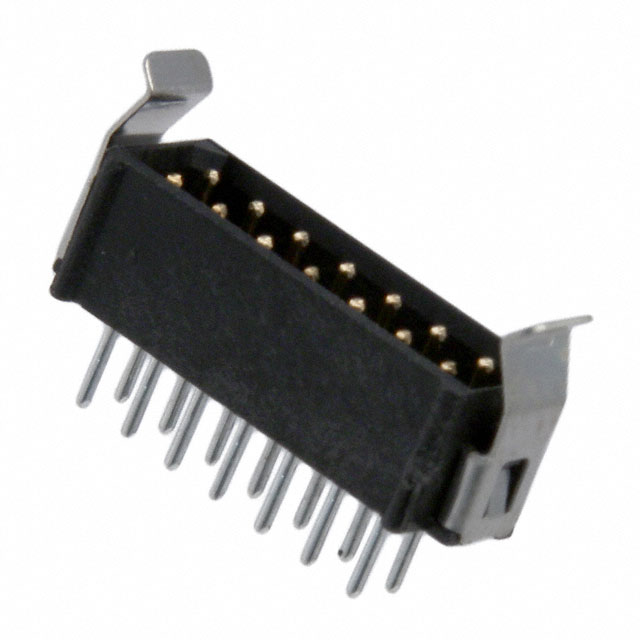

The Harwin M80-8631442 is a Datamate L-Tek series header featuring 14 positions in a dual inline configuration. It utilizes a 2 mm pitch and operates at 120 V with a 3 A current rating. The component employs male pin contacts made of phosphor bronze with gold plating, housed in black PPS. Designed for through-hole mounting, it offers a straight orientation and includes latching features for secure board-to-board or wire connections.

Feature Summary

• Dual row shrouded design with integrated latching mechanism
• Gold-plated phosphor bronze contacts for reliable conductivity
• Polyphenylene sulfide housing for thermal stability

Applications

• Board-to-board interconnects
• Wire-to-board connections
• Industrial control systems

Procurement Notes

Verify the specific RoHS compliance status and REACH SVHC declarations against the latest manufacturer datasheet before integration. Confirm that the gold plating specification matches the application requirements for contact resistance and durability. Ensure the through-hole soldering profile aligns with the PPS material thermal limits during assembly processes.

Selection Notes

Select this part when a 14-position vertical header with latching capability is required. The 2 mm pitch suits dense layouts. Gold plating is preferred for low signal applications. Verify that the 120 V rating meets circuit voltage needs. Consider the straight orientation for standard PCB stacking or cable routing scenarios.

Part Context

This component belongs to the Datamate L-Tek family, known for high-density connectivity. It complements female sockets and cable kits within the same ecosystem. The M80 prefix indicates Harwin's standard connector line. It serves as a male counterpart to compatible socket assemblies in industrial and consumer electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin L-Tek variants only if pin count and pitch match exactly.
