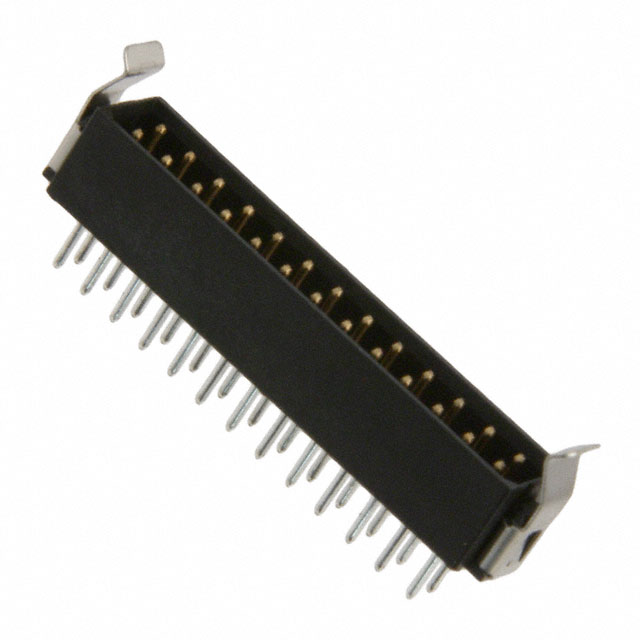

M80-8632642

Description：CONN HEADER VERT 26POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:8382e0b9bee2 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 26POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Plug
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8632642

Overview

The Harwin M80-8632642 is a Datamate L-Tek series header connector featuring 26 positions arranged in a dual-row configuration with a 2 mm pitch. It utilizes male pin contacts made of phosphor bronze with gold plating, housed in black thermoplastic insulation. Designed for right-angle through-hole solder termination, this component supports a rated current of 3 A and a voltage rating of 120 V AC/DC. The product is currently classified as obsolete by the manufacturer.

Feature Summary

Right-angle PCB mounting design for space-constrained applications
Gold-plated phosphor bronze contacts for reliable signal transmission
Dual-row shrouded housing structure for secure mating

Applications

Industrial control system interconnections
Communication equipment board-to-board links
Consumer electronics internal wiring harnesses

Procurement Notes

This specific part number is officially discontinued and no longer manufactured by Harwin. Procurement should focus on verifying the authenticity of remaining stock from authorized distributors or secondary market suppliers. Buyers must confirm the condition of unused inventory and ensure compatibility with replacement alternatives before finalizing acquisition.

Selection Notes

Engineers requiring active components should evaluate current Datamate L-Tek equivalents that maintain the 2 mm pitch and 26-position layout. Selection criteria must prioritize matching the right-angle orientation, through-hole termination method, and electrical ratings to ensure seamless integration into existing designs without re-engineering the footprint.

Part Context

The M80-8632642 belongs to the Datamate L-Tek family, known for high-density interconnect solutions. This series emphasizes robust mechanical latching and precise alignment features suitable for demanding environments. As an obsolete item, it represents a legacy design phase within Harwin's extensive connector portfolio history.
