M80-8660422

Overview

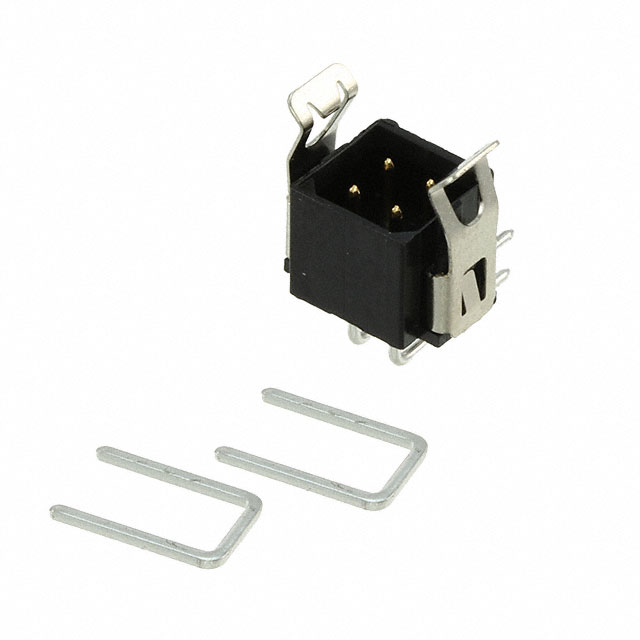

The Harwin M80-8660422 is a Datamate L-Tek series male header connector designed for board-to-board and wire-to-board applications. It features a 2+2 position configuration with a 2 mm pitch and double-row arrangement. The component utilizes right-angle through-hole solder pin termination for secure PCB mounting. Electrical specifications include a current rating of 3 A and a voltage rating of 120 V. The housing is constructed from black Polyphenylene Sulfide (PPS) material, providing high-temperature resistance and UL 94V-0 flammability classification. Contact plating consists of tin over copper alloy.

Feature Summary

• Features a latched design for secure mechanical connection between mating components.
• Utilizes a right-angle orientation to facilitate compact circuit board layout.
• Constructed with high-temperature PPS housing for reliable thermal performance.

Applications

• Industrial control systems
• Consumer electronics assemblies
• Telecommunications equipment

Procurement Notes

Verify the specific suffix code against the manufacturer's official catalog to confirm the exact contact plating and housing variant, as minor alphanumeric differences may indicate distinct electrical or mechanical specifications. Confirm that the required quantity aligns with current manufacturing availability, as lead times can vary based on production schedules. Ensure compatibility with mating sockets within the same Datamate L-Tek family before finalizing procurement orders.

Selection Notes

Select this component when a right-angle male header with a 2 mm pitch is required for space-constrained designs. The 3 A current rating suits moderate power distribution needs. Verify that the PCB footprint matches the specified through-hole dimensions and that the right-angle profile does not interfere with adjacent components or enclosure constraints during assembly.

Part Context

This part belongs to the Datamate L-Tek family, which provides versatile interconnection solutions for various electronic industries. The series is known for its modular design, allowing mixed pin counts and orientations. The M80-8660422 specifically addresses applications requiring robust mechanical retention via latching mechanisms while maintaining a low-profile vertical integration into printed circuit boards.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek male headers with identical 2+2 positioning, 2 mm pitch, and right-angle through-hole termination. Ensure replacement parts maintain the same latching feature and tin-plated contacts to guarantee mechanical and electrical interchangeability without redesigning the host system.

FAQ

What is the contact plating material for this connector?

The contacts are plated with tin over a copper alloy base material.

Does this connector include a latching mechanism?

Yes, the Datamate L-Tek series incorporates a secure latching feature for positive connection retention.
