Product Detailed Parameters
- Description：CONN HEADER R/A 6POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

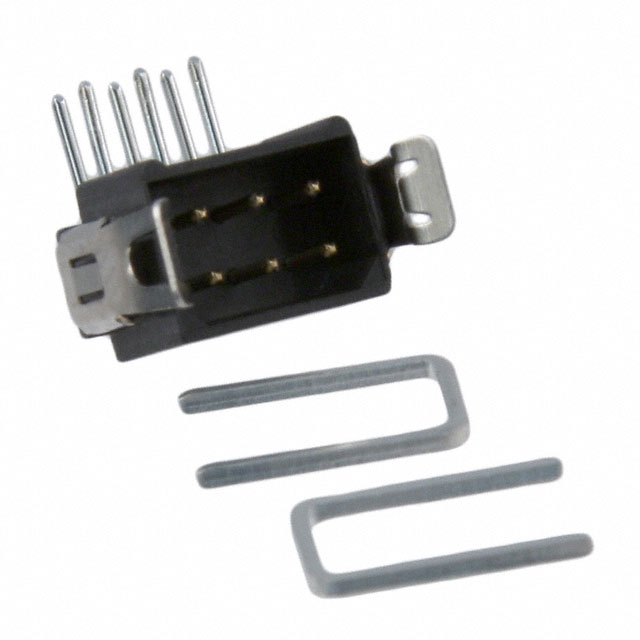

The M80-8660622 is a Datamate L-Tek header connector manufactured by Harwin. It features a 6-position, 2-row configuration with a 2 mm pitch. Designed for right-angle through-hole mounting, it utilizes male pin contacts made of phosphor bronze with gold plating. The housing is constructed from black polyester. The component has a current rating of 3 A and a voltage rating of 120 V.
Feature Summary
- Right-angle through-hole mounting style for PCB integration
- Shrouded design with friction latch mechanism
- Gold-plated phosphor bronze contacts for conductivity
Applications
- General electronic equipment interconnections
- Industrial control system signal routing
- Consumer electronics board-to-board connections
Procurement Notes
Verify the specific datasheet version to confirm RoHS compliance status, as some sources indicate non-compliance while others suggest detailed verification is required. Ensure the procurement source provides official Harwin documentation to validate the manufacturing origin and material specifications against the provided technical parameters.
Selection Notes
Select this component when a right-angle, shrouded male header with a 2 mm pitch is required. The 3 A current rating and 120 V voltage rating suit low-power signal applications. Verify that the PCB layout accommodates the right-angle footprint and that the mating connector matches the Datamate L-Tek series specifications.
Part Context
This part belongs to the Datamate L-Tek series, which is characterized by its compact size and high-density capabilities. The L-Tek variant typically features a latched connection for secure mating. As a 6-position header, it serves as a standard interface point within the broader Harwin connector portfolio for space-constrained designs.
Replacement Considerations
M80-8540642: Datamate L-Tek 3+3 POS DIL MALE VERT UNLATCHED GOLD. Note that this substitute differs in orientation (vertical vs. right-angle) and latch type (unlatched vs. latched). Verify mechanical fit and mating compatibility before substitution.
