Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

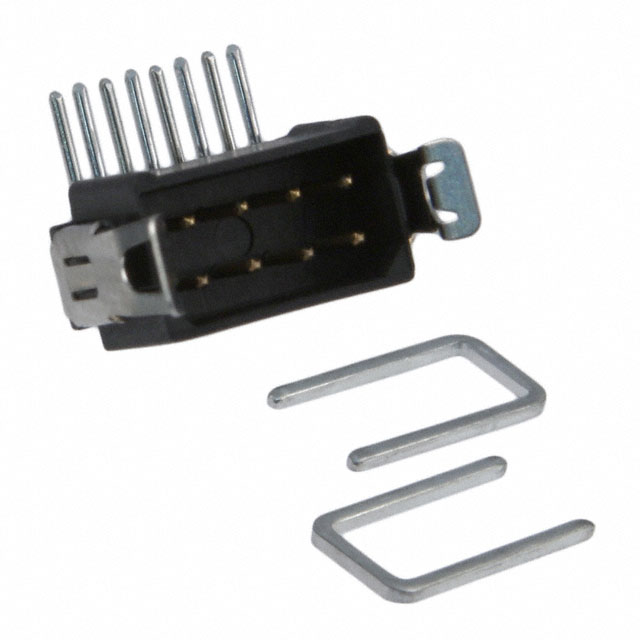

The Harwin M80-8660822 is a Datamate L-Tek series connector header designed for through-hole mounting. It features an 8-position, two-row configuration with a 2 mm (0.079 inch) pitch. The component utilizes male pin contacts made of phosphor bronze with gold plating, housed in a black polyester body. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C. The right-angle design facilitates board-to-board or cable connections.
Feature Summary
- Right-angle through-hole mounting style for compact PCB integration
- Gold-plated phosphor bronze contacts ensure reliable signal transmission
- Shrouded housing design provides alignment and protection
Applications
- Board-to-board interconnects
- Cable-to-board connections
- Embedded system interfaces
- Automotive electronic modules
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and housing material specifications. Ensure the selected variant matches the required right-angle orientation and through-hole termination type for your circuit design. Cross-reference the RoHS compliance status directly with the latest product documentation before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, right-angle male header is required for dense two-row layouts. The 2 mm pitch accommodates standard trace spacing while the shrouded design prevents misalignment during mating. Consider the 3 A current rating and 120 V voltage limit to ensure compatibility with the target application's electrical requirements and environmental operating conditions.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for high-density connectivity solutions. The M80 series specifically targets applications requiring robust mechanical latching and reliable performance in demanding environments. As a male header, it is designed to mate with corresponding female sockets or wire housings within the same connector ecosystem.
Replacement Considerations
M80-8660842
FAQ
What is the contact plating material for this connector?
The contacts are plated with gold to ensure corrosion resistance and stable electrical performance.
Is this connector suitable for high-voltage applications?
It is rated for 120 V, making it suitable for low-voltage digital and power signals but not high-voltage industrial mains.
