M80-8661022

Overview

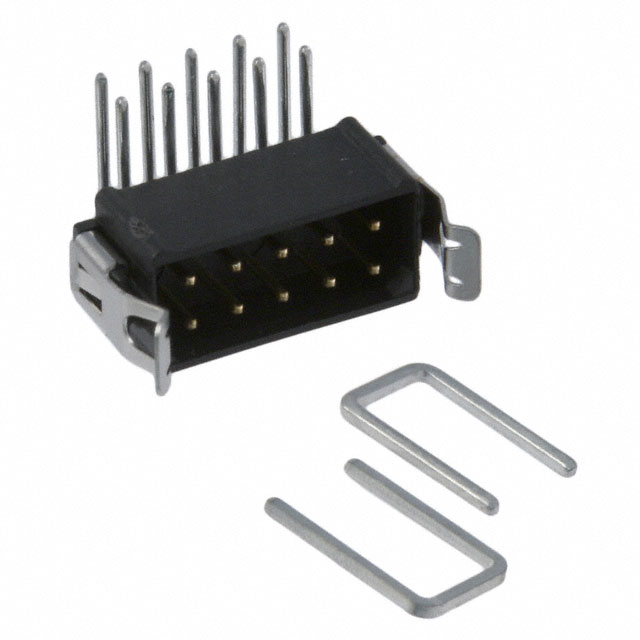

The Harwin M80-8661022 is a Datamate L-Tek connector header featuring 10 positions (5+5) in a dual in-line configuration. It utilizes male pins with a 2.00mm pitch and supports right-angle through-hole mounting. The contacts are tin-plated, rated for 3A current and 120V voltage. The component includes integrated strain relief clips and is packaged in tubes.

Feature Summary

• Right-angle through-hole mounting design for space-constrained PCB layouts
• Integrated strain relief clips to secure wire connections
• Tin-plated contacts for reliable conductivity

Applications

• General electronic interconnects
• Wire-to-board connections
• Industrial control systems

Procurement Notes

Verify the specific ordering suffix to ensure correct contact plating and housing color. Confirm that the right-angle orientation matches the assembly requirements. Check RoHS compliance status as indicated by distributor data. Ensure the 10-position count aligns with circuit design needs before procurement.

Selection Notes

Select this model when right-angle termination is required for 2mm pitch applications. The tin plating offers cost-effective conductivity compared to gold variants. Ensure the 3A rating meets the circuit's electrical load. Verify compatibility with mating female sockets from the same Datamate series.

Part Context

This component belongs to the Harwin Datamate L-Tek series, designed for high-density interconnects. The series is known for its robust locking mechanisms and versatile mounting options. The M80-8661022 specifically addresses needs for angled PCB entry points with secure cable retention.

Replacement Considerations

No public confirmed substitute part numbers are available.
