M80-8661222

Overview

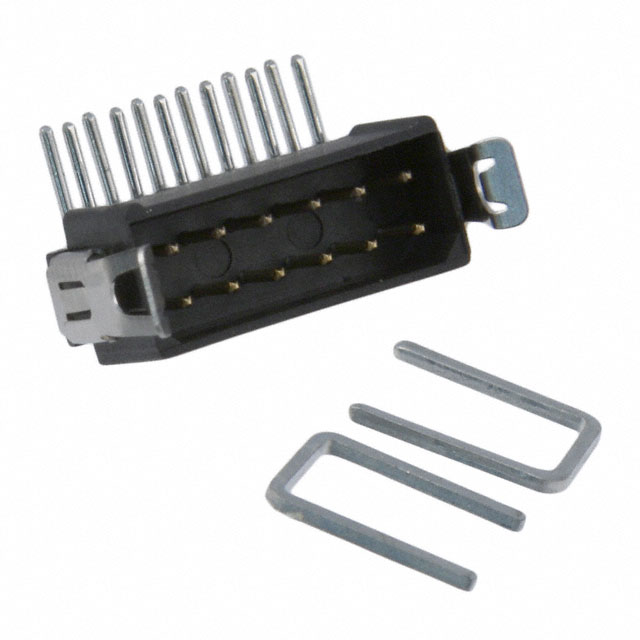

The Harwin M80-8661222 is a Datamate L-Tek male header featuring 12 positions arranged in a dual in-line (DIL) configuration with a 6+6 layout. It utilizes a 2 mm pitch and operates at up to 120 V with a 3 A current rating. The connector employs phosphor bronze contacts with tin plating, housed in black polyester. Designed for right-angle through-hole mounting, it supports an operating temperature range from -55 C to +125 C.

Feature Summary

• Right-angle latch mechanism ensures secure mating stability
• Shrouded design provides alignment and protection
• Through-hole solder pin termination method

Applications

• Industrial control systems requiring robust board-to-board connections
• Test and measurement equipment interfaces
• Automotive electronics modules

Procurement Notes

Verify the specific contact finish designation within the official datasheet to confirm tin plating specifications. Ensure that the RoHS compliance status aligns with project requirements by checking the manufacturer's latest documentation. Confirm that the housing material properties meet environmental constraints before finalizing procurement orders.

Selection Notes

Select this component when a right-angle male header with a 2 mm pitch is required for through-hole PCB assembly. The DIL configuration suits applications needing high-density connections. Verify that the mechanical latch style matches the mating receptacle requirements and that the thermal ratings accommodate the operational environment.

Part Context

This part belongs to the Datamate L-Tek series, designed for reliable interconnect solutions. The M80-8661222 variant specifically addresses needs for angled mounting configurations. It complements other components in the Harwin ecosystem, providing standardized dimensions and electrical characteristics for consistent system integration.

Replacement Considerations

M80-8511242 serves as a parameter-equivalent alternative within the same series.
