M80-8661422

Overview

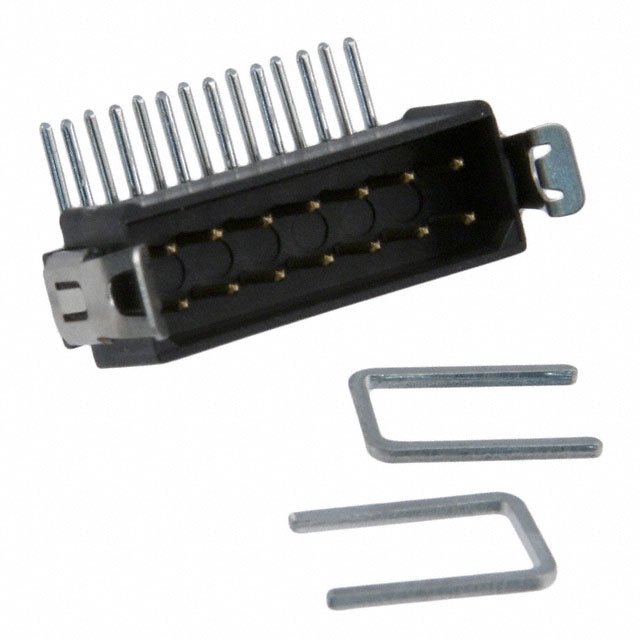

The M80-8661422 is a Datamate L-Tek connector header from Harwin Inc., designed for right-angle through-hole mounting. It features 14 positions arranged in two rows with a 2.00mm (0.079") pitch. The connector utilizes male pin contacts made of phosphor bronze, featuring selective gold plating on the mating interface and tin-lead plating on the tail. Rated for 120V and 2.2A, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black, glass-reinforced polyester with UL94 V-0 flammability rating.

Feature Summary

• Incorporates integrated strain relief clips for mechanical stability
• Features jackscrew locking mechanism for secure attachment
• Utilizes high-temperature resistant UL94 V-0 housing material

Applications

• Embedded system interconnects
• Automotive electronic modules
• Power supply unit connections

Procurement Notes

Verify that the specific part number corresponds to the right-angle, latched variant with tin-lead tail plating. Confirm compatibility with mating sockets from the same Datamate L-Tek series. Ensure the selected component meets the required current rating and thermal operating conditions for the target application environment.

Selection Notes

Select this component when right-angle board-to-board or cable connections are required. The dual-row configuration supports higher density layouts compared to single-row alternatives. The jackscrew feature provides robust retention in high-vibration environments. Verify that the 2.00mm pitch aligns with the PCB footprint design constraints.

Part Context

This component belongs to the Harwin Datamate L-Tek family, known for compact rectangular connectors. The series offers various configurations including surface mount and through-hole options. The M80-8661422 specifically addresses applications requiring reliable, high-density interconnections with secure mechanical locking capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available.
