Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

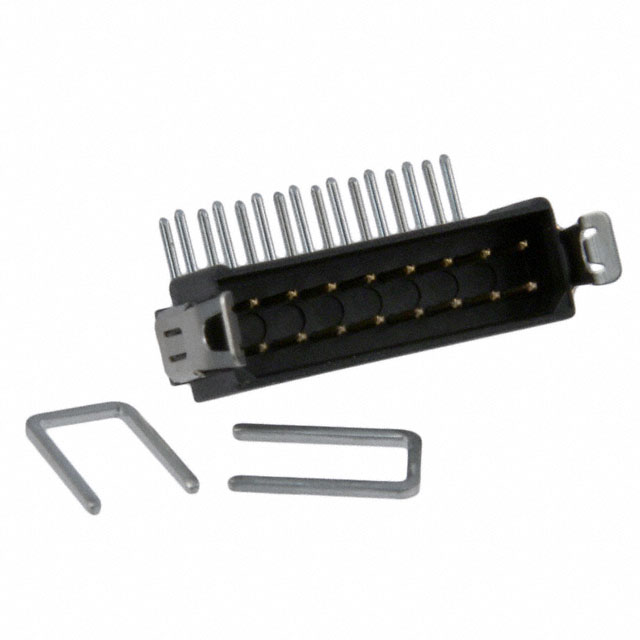

The M80-8661622 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 16-position (8+8) dual in-line configuration with male pin contacts. The connector utilizes a 2.0 mm (0.079 inch) pitch and is designed for right-angle surface mount installation. Contact materials consist of phosphor bronze with gold plating, rated for 3 A current and 120 V voltage. The housing is constructed from black polyester, offering UL 94V-0 flammability classification.
Feature Summary
- Datamate L-Tek series design with secure latching mechanism
- Right-angle surface mount termination for PCB integration
- High-temperature resistant polyester housing material
Applications
- Board-to-board interconnections
- Wire-to-board connections
- Industrial control systems requiring robust connectivity
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and housing material variants. Ensure compatibility with mating sockets from the same Datamate L-Tek family. Confirm surface mount footprint dimensions against the official datasheet before finalizing the design. Check RoHS compliance status if required for specific regulatory environments.
Selection Notes
Select this component when right-angle SMT headers are required for high-density applications. The 2.0 mm pitch allows for compact board layouts. Consider the 3 A current rating for power distribution needs. Verify that the mating connector supports the dual in-line configuration and latching requirements.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for mixed technology connectors combining wire and PCB interfaces. The M80-866 base number indicates a standard header configuration within the broader M80 rectangular connector catalog. It complements female socket counterparts for complete system assembly.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference with other Harwin Datamate L-Tek headers for mechanical fit. Verify electrical parameters match if considering alternative manufacturers.
