Product Detailed Parameters
- Description：CONN HEADER R/A 26POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

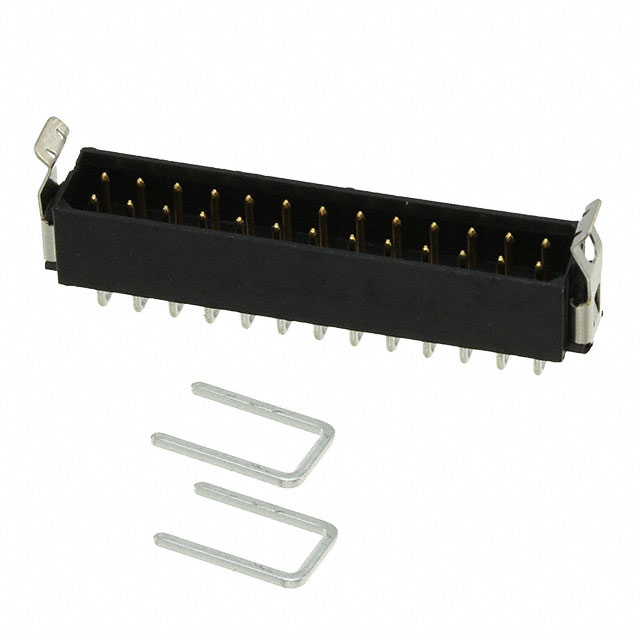

The Harwin M80-8662622 is a 26-position male connector from the Datamate L-Tek series. It features a double in-line (DIL) configuration with 13+13 pins arranged in two rows. The connector utilizes a right-angle board mount style and includes an integrated latch mechanism for secure attachment. Contact plating is tin, suitable for general-purpose applications.
Feature Summary
- Four-finger beryllium copper contact technology ensures high-reliability connections without signal loss.
- Integrated latch mechanism provides secure mating and retention during operation.
- Right-angle design facilitates compact board-to-board or cable interconnections.
Applications
- Industrial control systems requiring robust interconnects
- Aerospace wiring harnesses demanding high reliability
- Data center equipment connections
Procurement Notes
Verify the specific ordering suffix to confirm the tin plating option and right-angle orientation. Ensure compatibility with the corresponding female housing or header within the Datamate L-Tek family. Confirm that the latch mechanism meets the mechanical requirements of the target assembly before finalizing procurement.
Selection Notes
Select this component when a right-angle male connection is required for space-constrained designs. The L-Tek series offers a balance of performance and cost. Verify that the mating partner supports the four-finger contact interface to maintain electrical integrity and mechanical stability in the final application.
Part Context
This part belongs to the Datamate L-Tek product line by Harwin Inc., designed for power and signal transmission. The series is known for its high-density capabilities and reliable performance in demanding environments. The M80 prefix indicates the specific connector family characteristics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Evaluate cross-compatibility within the Datamate L-Tek family based on pin count, row configuration, and mounting style before considering alternatives.
