M80-8663422

Overview

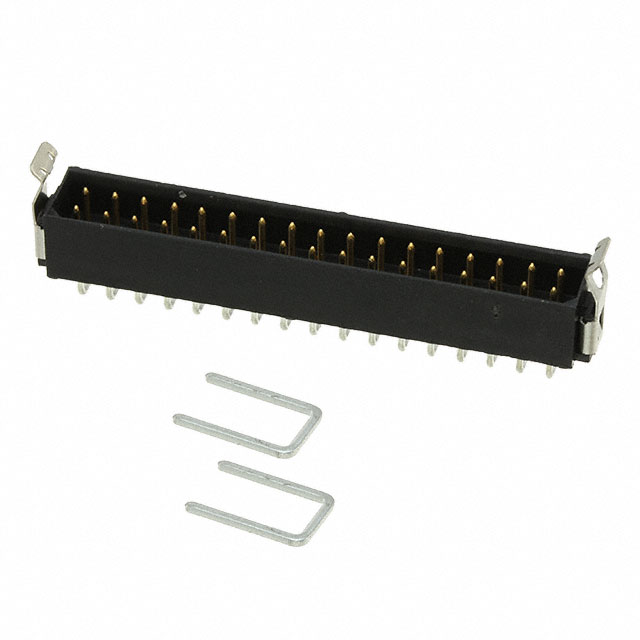

The Harwin M80-8663422 is a Datamate L-Tek male header connector designed for board-to-board or wire-to-board applications. It features a 2 mm pitch and a double-row configuration with 34 positions. The unit utilizes through-hole right-angle termination with gold-plated contacts, ensuring reliable electrical performance. Rated for 2.2 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C. The black polyamide housing provides UL 94 V-0 flammability rating, while integrated strain relief clips enhance mechanical stability in high-vibration environments.

Feature Summary

• Double-row shrouded male pin header design
• Integrated strain relief clips for cable security
• Right-angle through-hole mounting style
• Gold-plated phosphor bronze contacts

Applications

• Industrial control systems
• Automotive electronics
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating thickness and material composition. Ensure the selected variant matches the required 2.2 A current rating and 120 V voltage specifications for your circuit design. Confirm that the right-angle through-hole footprint aligns with your PCB layout requirements before finalizing procurement.

Selection Notes

Select this component when a robust, latched connection is required for power or signal transmission in space-constrained assemblies. The right-angle orientation facilitates compact board stacking or cable routing perpendicular to the mating surface. Consider the 2 mm pitch and 34-position capacity to ensure adequate I/O density without exceeding the 2.2 A per-contact thermal limits.

Part Context

This part belongs to the Datamate L-Tek series, known for its secure latching mechanism and high durability. The M80-8663422 specifically serves as a male counterpart to female DIL connectors within the same ecosystem, enabling modular interconnect solutions. Its construction supports repeated mating cycles while maintaining low contact resistance and stable signal integrity across varying environmental conditions.

Replacement Considerations

No public confirmed substitute part numbers are available.
