M80-8670622

Overview

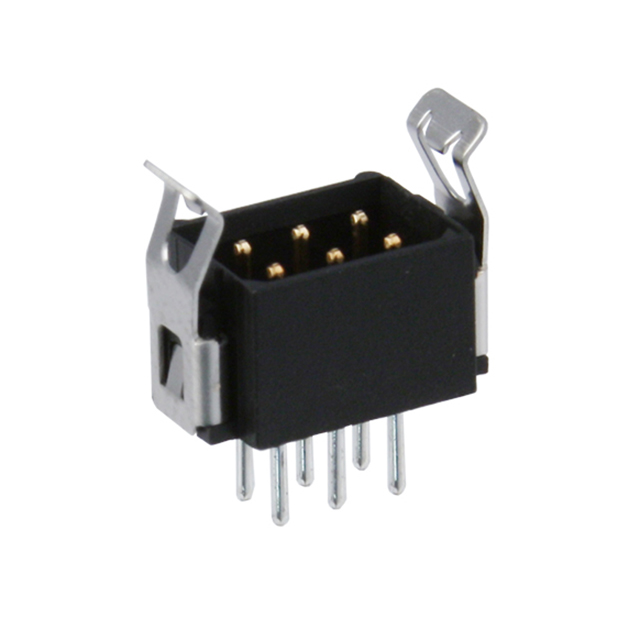

The Harwin M80-8670622 is a Datamate L-Tek male header connector featuring six positions arranged in a double row (3+3) configuration. It utilizes a vertical through-hole mounting style with a 2.00mm pitch. The component incorporates friction latches for secure mating and employs tin plating on the contacts. Designed for board-to-board or wire-to-board applications, it supports a rated voltage of 120V and operates within a temperature range of -55°C to 125°C.

Feature Summary

• Vertical double-row male pin configuration
• Integrated friction latch locking system
• Through-hole termination for PCB mounting

Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial control modules
• Consumer electronics assemblies

Procurement Notes

Verify end-of-life status as this part may be obsolete. Confirm availability through authorized distributors only. Check for compatible mating sockets within the Datamate L-Tek series. Ensure specifications match current design requirements before procurement.

Selection Notes

Select this connector for vertical mounting needs requiring secure latch retention. Consider the 2.00mm pitch and double-row layout for space-constrained designs. Verify compatibility with mating female connectors and ensure adequate clearance for the latch mechanism during assembly.

Part Context

This component belongs to the Datamate L-Tek series by Harwin Inc., known for robust mechanical performance. The series offers various configurations for diverse electronic integration needs. This specific model provides a reliable solution for high-density vertical connections.

Replacement Considerations

M80-8520642 is listed as a potential replacement. Verify functional equivalence and physical dimensions before substitution.
