M80-8670805

Overview

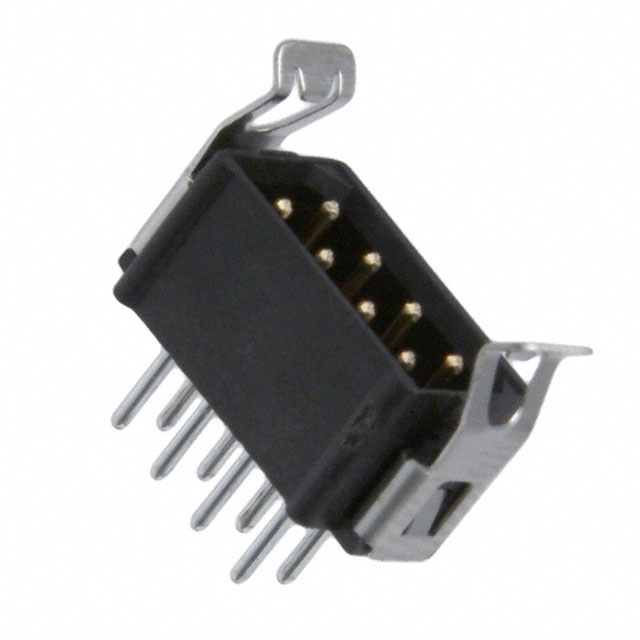

The M80-8670805 is a Datamate L-Tek male connector from Harwin Inc., designed for power-to-board applications. It features an 8-contact (4+4) double-row configuration with a 2.00mm pitch. The component utilizes straight vertical through-hole termination and accepts 24-28 AWG wire via crimping. Contact surfaces are gold-plated, while the housing is black polyphenylene sulfide rated UL94 V-0.

Feature Summary

• Four-finger beryllium copper contact technology ensures connection integrity without loss.
• Fully shrouded contacts provide polarized mouldings for secure mating.
• Straight vertical PCB tail design facilitates throughboard installation.

Applications

• Power to board interconnects
• High-reliability electronic assemblies
• Industrial control systems

Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm terminal style and plating specifications. Ensure compatibility with the corresponding female counterpart listed in the manufacturer's mating guide. Confirm that the selected variant meets the required environmental ratings for the intended application environment.

Selection Notes

Select this model for applications requiring a male double-row connector with vertical orientation. It is suitable for circuits needing 8 positions with a 2.00mm spacing. Consider the gold finish for corrosion resistance and the UL94 V-0 rating for flammability safety in enclosed spaces.

Part Context

This part belongs to the Datamate L-Tek series, characterized by high-reliability connectors using beryllium copper contacts. The series supports various termination styles and row configurations, widely used in demanding industrial and commercial electronics where vibration resistance and signal integrity are critical.
