M80-8671022

Overview

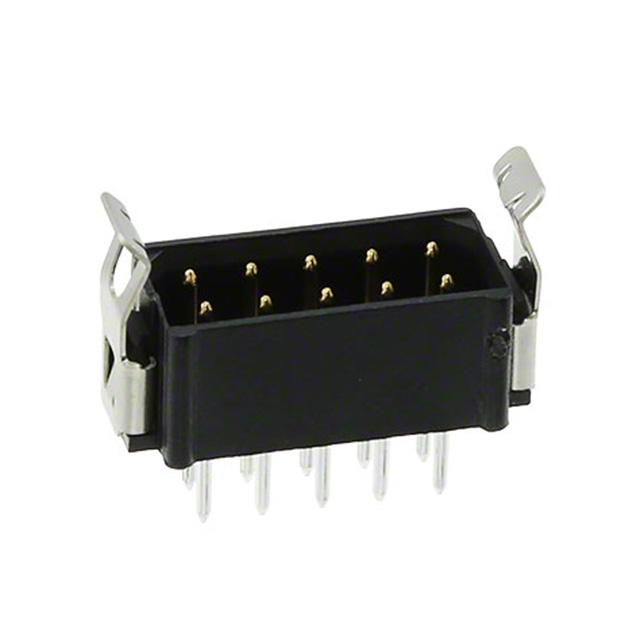

The M80-8671022 is a Datamate L-Tek male header connector manufactured by Harwin. It features a 10-position (5+5) double in-line configuration with a 2 mm pitch. Designed for vertical through-board mounting, it utilizes solder pin termination. The contacts are made of phosphor bronze with gold plating, while the housing is black polyester. It supports a maximum current of 3 A and voltage of 120 V, operating within a temperature range of -55°C to +125°C.

Feature Summary

• Vertical double-row male plug design for secure board-to-board or wire-to-board connections
• Integrated latch mechanism ensures reliable mating retention
• Gold-plated contact areas provide durable electrical performance
• Through-board termination compatible with standard PCB assembly processes

Applications

• Industrial control systems requiring robust power and signal interconnects
• Consumer electronics utilizing compact vertical mounting solutions
• Automotive electronic modules needing high-reliability connectors

Procurement Notes

Verify the specific contact finish variant upon ordering, as Datamate L-Tek headers may be available with tin or gold finishes on different surfaces. Confirm that the vertical orientation and 3mm PCB termination height align with your mechanical constraints. Ensure compatibility with the corresponding female socket series for proper latching engagement.

Selection Notes

Select this component when a vertical, double-row male header with a 2 mm pitch is required. It is suitable for applications demanding a 3 A current rating and 120 V insulation. Consider the integrated latch feature if vibration resistance is critical. Verify that the 10-position count matches the circuit requirements before integration.

Part Context

This part belongs to the Harwin Datamate L-Tek family, known for its modular connectivity solutions. The L-Tek series offers various configurations including right-angle and straight orientations. This specific model represents a standard vertical through-board option within the broader product line.

Replacement Considerations

Direct substitutes include other Harwin Datamate L-Tek 10-position male headers with identical pitch and orientation. Verify that any alternative maintains the same latch mechanism and contact material specifications to ensure functional equivalence.
