M80-8671205

Overview

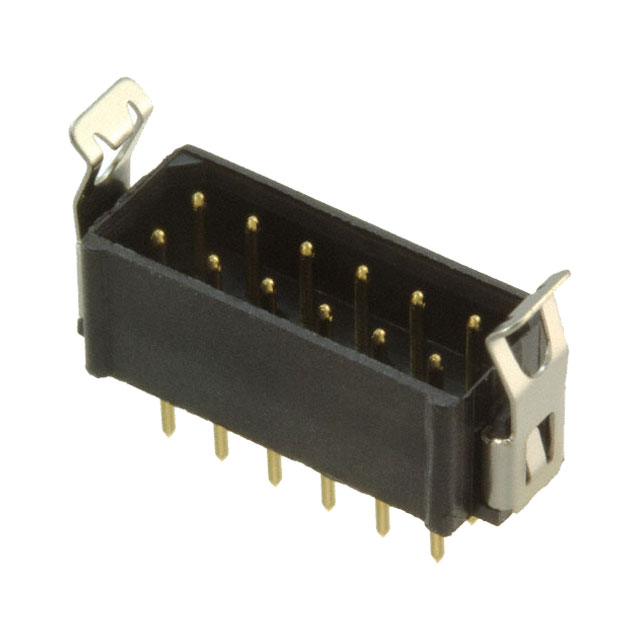

The Harwin M80-8671205 is a Datamate L-Tek male connector designed for board-to-board and wire-to-board applications. It features a double-row configuration with 12 contacts (6+6) arranged in a dual in-line format. The component utilizes a 2 mm pitch spacing and is constructed with gold-plated copper alloy contacts housed in black polyphenylene sulfide. It employs vertical through-hole termination with 3 mm PCB tail length. The connector includes polarized mouldings, fully shrouded contacts, and integrated locking latches that require tooling for engagement.

Feature Summary

• Integrated locking latches requiring specific tooling for mating
• Polarized mouldings ensuring correct alignment during connection
• Fully shrouded contact design for enhanced protection

Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-reliability electronic assemblies

Procurement Notes

Verify the part number against official Harwin documentation to confirm the Datamate L-Tek series designation and latch mechanism specifications. Ensure compatibility with required mating tools for the locking latches. Cross-reference terminal count and pitch dimensions with system requirements before procurement.

Selection Notes

Select this component for applications requiring secure mechanical retention via tool-assisted latching. The vertical orientation and 2 mm pitch suit dense board layouts. Confirm that the through-hole termination method aligns with the manufacturing process and that the housing material meets environmental operating conditions.

Part Context

This component belongs to the Harwin Datamate L-Tek series, which provides high-density interconnect solutions. The M80-8671205 variant specifically addresses needs for secure, latched connections in compact electronic designs, distinguishing itself from standard unshrouded or unlatched header options within the broader connector portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mating compatibility with existing female connectors listed in the manufacturer's datasheet pages 21 to 24 before considering alternative sourcing.
