M80-8671422

Overview

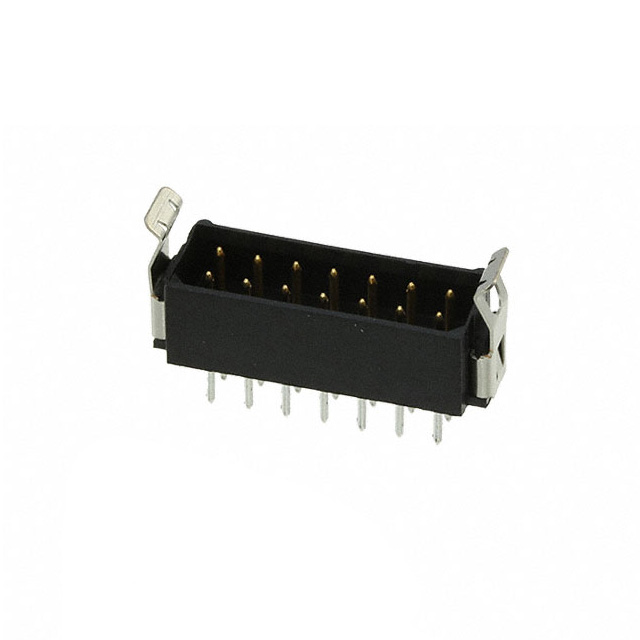

The M80-8671422 is a Datamate L-Tek male pin header manufactured by Harwin. It features a 14-position, 2-row configuration with a 2 mm pitch. Designed for vertical through-hole mounting, the connector utilizes tin-plated brass contacts and polyester housing. It operates within a temperature range of -55°C to +125°C and supports a voltage rating of 120 V.

Feature Summary

• Vertical board-to-board or wire-to-board interconnection capability
• Latch mechanism for secure mating engagement
• High-reliability construction suitable for demanding environments

Applications

• Industrial control systems requiring robust signal transmission
• Telecommunications equipment interfaces
• Automotive electronics modules

Procurement Notes

Verify component authenticity against official Harwin documentation. Confirm RoHS compliance status and REACH SVHC details prior to integration. Ensure storage conditions maintain contact integrity. Cross-reference datasheet revisions to confirm current manufacturing specifications and material composition updates.

Selection Notes

Select this variant for applications requiring vertical orientation and latch retention. The 2 mm pitch accommodates dense circuit layouts. Tin plating offers cost-effective conductivity compared to gold options. Verify mechanical clearance for the latch mechanism during PCB layout design.

Part Context

This part belongs to the Datamate L-Tek series, designed for high-reliability interconnects. The M80 prefix indicates a specific connector family within Harwin's portfolio. It complements female housings and cable assemblies to form complete connection systems for signal and low-power applications.

Replacement Considerations

• B5743-214-M-T-1

FAQ

What is the contact plating material?

The contacts are plated with tin.

Is this connector shrouded?

Yes, the Datamate L-Tek series typically features shrouded headers to guide mating pins.
