M80-8671605

$3.80

Description：DATAMATE L-TEK DIL MALE VERTICAL
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:ef5ed5e58ca3 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DATAMATE L-TEK DIL MALE VERTICAL
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800VAC/DC

Download product information

M80-8671605

Overview

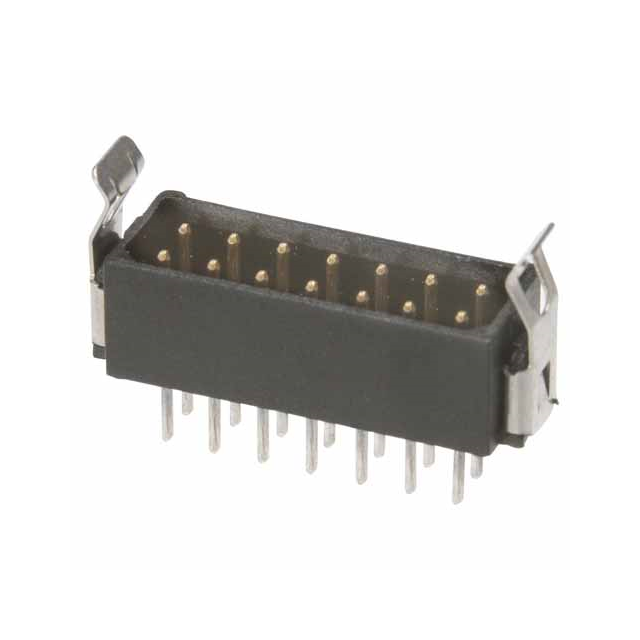

The M80-8671605 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 2x8 configuration with 16 positions and a 2.00mm (0.079 inch) pitch. Designed for vertical through-board mounting, it utilizes a printed circuit tail termination style. The contacts are gold-plated to ensure reliable signal transmission. This component belongs to the Datamate series, which is engineered for high-reliability applications requiring robust mechanical and electrical performance in compact form factors.

Feature Summary

Vertical through-board mounting orientation for direct PCB integration
Gold-plated contacts ensuring durable and low-resistance connections
Datamate L-Tek series design optimized for high-density interconnects

Applications

Industrial control systems requiring secure board-to-wire connections
Telecommunications equipment utilizing high-reliability interconnects
Automotive electronics demanding robust signal integrity

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating thickness and housing material specifications. Ensure compatibility with mating female connectors within the same Datamate L-Tek family. Confirm that the vertical through-board footprint matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical male header with 16 positions is required for through-board assembly. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the gold plating for environments where corrosion resistance and stable contact resistance are critical operational requirements.

Part Context

This part belongs to the Harwin Datamate L-Tek series, a line of high-reliability connectors designed for demanding industrial and commercial applications. The series offers various configurations including crimp and solder terminations. The M80-8671605 specifically addresses needs for vertical male headers with secure locking mechanisms typical of the Datamate ecosystem.
