M80-8671622

$4.81

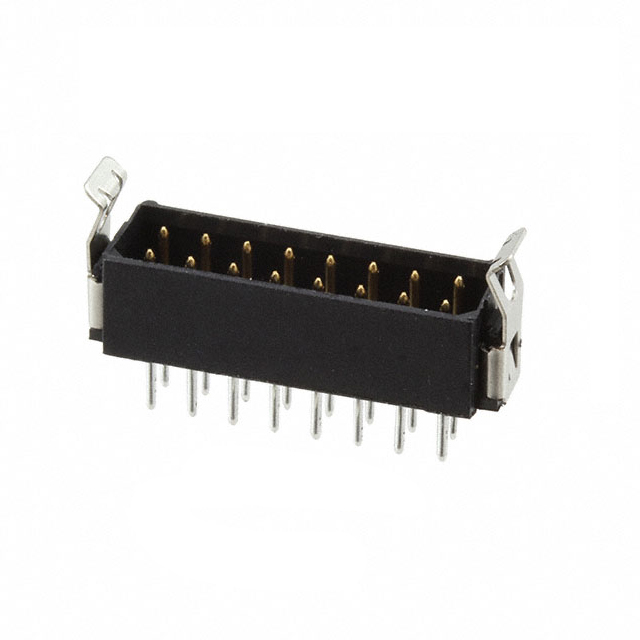

Description：CONN HEADER VERT 16POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:a471fc07bddd Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 16POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8671622

Overview

The M80-8671622 is a Datamate L-Tek male pin header manufactured by Harwin Inc. It features a 2 mm (0.079 in) pitch with 16 positions arranged in a double row configuration. The connector utilizes through-hole solder pin termination and operates at an angle of 0 degrees (straight). Electrical ratings include a current capacity of 3 A and a voltage rating of 120 V. The contacts are constructed from phosphor bronze with gold plating, housed in black polyester. The operating temperature range spans from -55°C to +125°C.

Feature Summary

Incorporates high-reliability four-finger beryllium copper contact technology for connection integrity
Equipped with locking latches requiring tooling for engagement
Features shrouded design for vertical straight mounting

Applications

Board-to-board interconnections
Wire-to-board connections
Embedded processor HMI development systems
Automotive control modules

Procurement Notes

Verify component authenticity against official Harwin documentation due to potential counterfeit risks. Confirm RoHS compliance status as indicated in specific datasheets. Ensure the required tooling for latch engagement is available during assembly. Check for end-of-life status or obsolescence notices before finalizing procurement plans.

Selection Notes

Select this model for applications requiring robust mechanical retention via tool-assisted latching. The gold-plated phosphor bronze contacts suit environments demanding reliable signal transmission. Verify PCB hole dimensions match the 2 mm pitch and through-hole specifications. Consider the straight orientation constraint when designing board layouts.

Part Context

This component belongs to the Datamate L-Tek series, designed for high-density interconnects. It represents a specialized solution within Harwin's portfolio, focusing on secure mating through mechanical latching mechanisms. The series is engineered for demanding industrial and automotive sectors requiring durable connectors.
