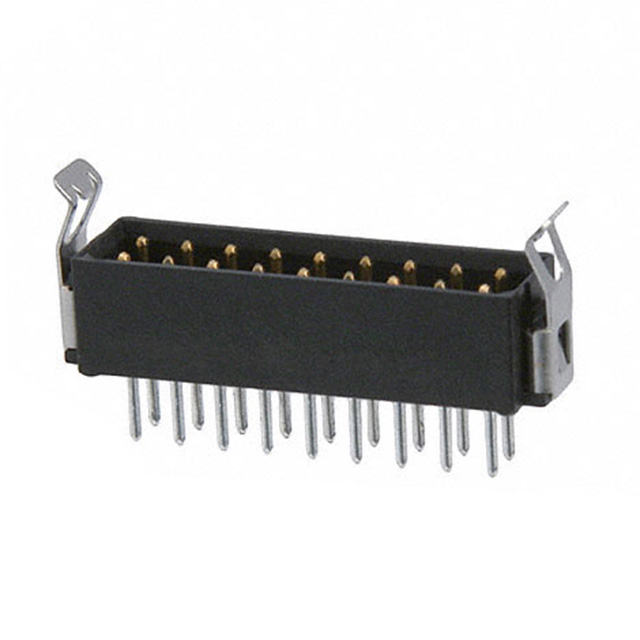

M80-8671822

$5.00

Description：CONN HEADER VERT 18POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:6d8d16eddc56 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 18POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：18
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8671822

Overview

The Harwin M80-8671822 is a Datamate L-Tek series male header connector designed for through-board termination. It features an 18-position configuration arranged in a double-row layout with a 2.00mm pitch. The contacts are gold-plated phosphor bronze pins, housed in a black polyester shell. This vertical connector includes locking latches requiring tooling for engagement and offers high mechanical resistance to shock, bump, and vibration across a temperature range of -55°C to +125°C.

Feature Summary

Datamate L-Tek series construction providing robust mechanical stability
Integrated locking latches secured by specialized tooling
Gold-plated phosphor bronze contacts for reliable conductivity
High resistance to shock, bump, and vibration environments

Applications

Power supply units
Embedded systems
Automotive solutions

Procurement Notes

Verify the specific suffix '22' confirms tin plating on the housing or contact finish details if critical, as datasheets may vary. Confirm that the required tooling for latch engagement is available for assembly. Ensure the through-board termination style matches the PCB design specifications. Check current availability status as lead times can vary significantly for this component type.

Selection Notes

Select this part when a vertical, double-row male header with locking capability is required. The 2.00mm pitch suits dense board layouts. Consider the need for assembly tools due to the latch mechanism. Verify thermal and environmental ratings against application requirements before finalizing the design integration.

Part Context

This component belongs to the Harwin Datamate family, known for high-density interconnects. The M80-8671822 specifically utilizes the L-Tek variant, which emphasizes durability in harsh conditions. It serves as a board-to-board or cable interface solution within the broader rectangular connector market.
