M80-8672605

Overview

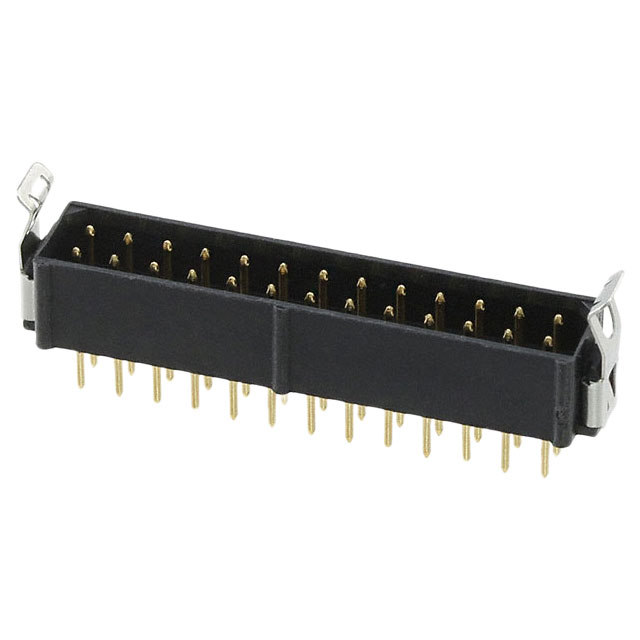

The M80-8672605 is a Datamate L-Tek series male plug connector featuring 26 positions arranged in a double-row configuration. It utilizes a 2mm (0.079 inch) pin-to-pin spacing and supports through-hole termination for PCB mounting. The contacts are gold-plated to ensure reliable conductivity, with a rated current of 2.2A and voltage rating of 800V. Designed for free-hanging or panel installation, it includes integrated locking latches requiring tooling for engagement.

Feature Summary

• Datamate L-Tek series male plug design
• Integrated locking latches for secure connection
• Gold-plated contacts for durability
• Through-hole termination style

Applications

• Industrial control systems
• Test and measurement equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version for the M80-8672605 to confirm mating stacking heights and tooling requirements. Ensure that the receiving PCB layout matches the through-hole termination specifications. Confirm compatibility with the corresponding female receptacle from the same Datamate L-Tek family before finalizing procurement orders.

Selection Notes

Select this component when a robust male header with locking features is required for high-voltage applications up to 800V. The 2.2A current rating suits moderate power distribution needs. Consider the need for specific tooling to engage the locking latches during assembly. Verify that the 26-position count aligns with the system's signal or power line requirements.

Part Context

This part belongs to Harwin’s Datamate L-Tek family, known for high-reliability interconnect solutions. The M80 series generally offers versatile configurations for various industrial environments. This specific model provides a straight, vertical orientation suitable for standard PCB mounting practices within the broader connector ecosystem.

Replacement Considerations

M80-8672601 is listed as a parameter-equivalent substitute option.
