M80-8680422

Overview

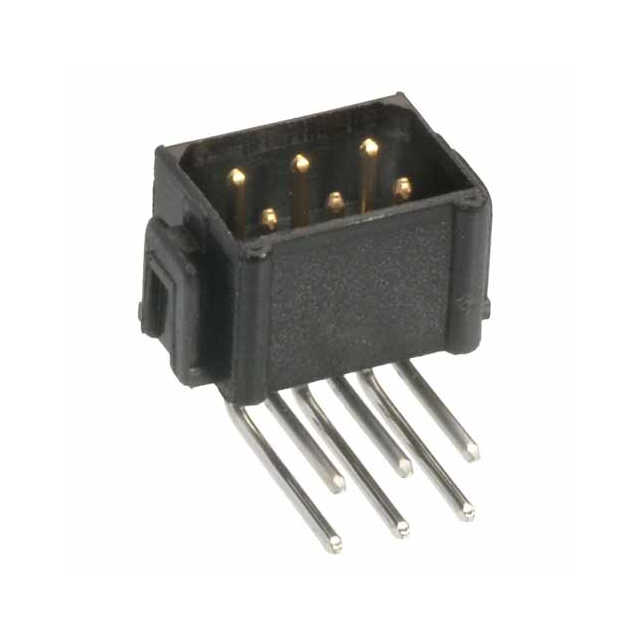

The M80-8680422 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a right-angle through-hole mounting style with 4 positions in a dual-row configuration. The connector utilizes phosphor bronze contacts with gold plating for the mating interface and tin-lead plating on the column. It has a 2mm pitch and row spacing, rated for 120V and 2.2A. The housing is constructed from black glass-filled PBT material meeting UL94 V-0 flammability standards. Operating temperature ranges from -55°C to 125°C.

Feature Summary

• Right-angle design facilitates compact board-to-board or cable connections
• Gold-plated contacts ensure reliable signal transmission
• Integrated stress relief clamp enhances mechanical stability

Applications

• Board-to-board interconnects
• Cable-to-board assemblies
• Industrial control systems

Procurement Notes

Verify component authenticity through authorized channels due to obsolete status. Confirm RoHS compliance details as documentation may vary. Check specific manufacturing date codes against project requirements. Ensure storage conditions maintain contact integrity prior to assembly.

Selection Notes

Select this model for applications requiring right-angle orientation and robust mechanical locking. Verify that the 2.2A current rating and 120V voltage limit align with circuit demands. Consider the dual-row layout for space-constrained designs needing high density.

Part Context

This component belongs to the Datamate L-Tek family, known for modular connectivity solutions. It complements female socket counterparts within the same series to form complete interconnect systems. The design supports various stacking heights and accessory options for customized assembly needs.

Replacement Considerations

The part status is listed as Obsolete. No direct public substitute part numbers are confirmed in the provided data. Evaluate compatible L-Tek series headers with matching pin counts and dimensions.
