M80-8680822

Overview

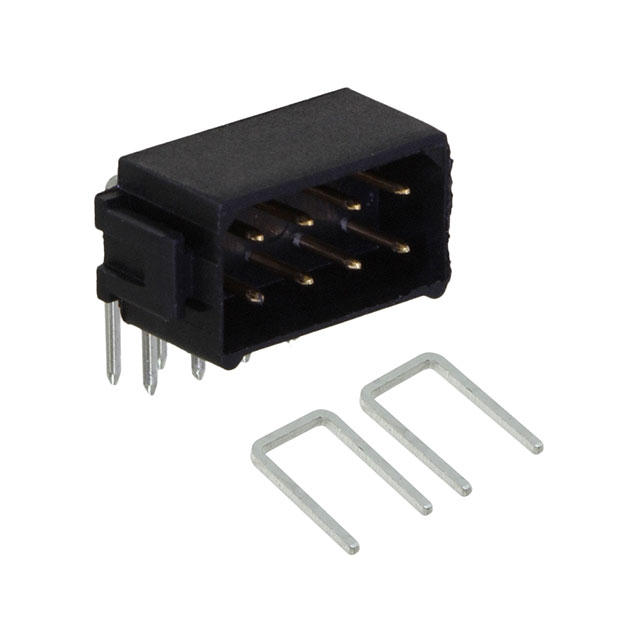

The Harwin M80-8680822 is a Datamate L-Tek male pin header featuring an 8-position (4+4) double-row configuration with a 2.00mm pitch. Designed for right-angle through-hole mounting, it utilizes phosphor bronze contacts with tin plating on the posts and gold mating surfaces. The connector supports a rated current of 3A and a voltage rating of 120V AC/DC. It operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Feature Summary

• Right-angle through-hole design for compact board-to-board interconnects
• Double-row 4+4 contact arrangement with 2.00mm spacing
• Tin-plated post contacts with gold mating surface finish
• Integrated strain relief clips for mechanical stability

Applications

• Compact board-to-board interconnect applications
• Industrial control systems requiring shock resistance
• Automotive electronics operating in extreme temperatures
• Medical equipment needing reliable vibration resistance

Procurement Notes

Verify the specific contact plating configuration, as standard Datamate headers often feature gold mating surfaces. Confirm that the tin-plated posts align with your soldering process requirements. Ensure the right-angle orientation matches your PCB layout constraints. Check for compatible strain relief clips if mechanical retention is required. Validate the 120V rating against your system's electrical specifications before integration.

Selection Notes

Select this model when space constraints necessitate a right-angle profile. The double-row 4+4 layout maximizes density while maintaining 2.00mm spacing. Tin plating offers cost-effective solderability, while gold mating surfaces ensure low contact resistance. Consider the 3A current rating for power distribution needs. Evaluate the -55°C to 125°C range for environmental suitability.

Part Context

Part of the Harwin Datamate L-Tek series, known for high reliability in harsh environments. The M80 series provides robust mechanical performance with 100G shock and 10G vibration resistance. This specific variant focuses on right-angle connectivity for efficient PCB stacking.

Replacement Considerations

Compatible mated connectors include M80-8500845 and M80-8870805. Verify pin count and row configuration match exactly. Ensure mating interface dimensions align with existing housing designs.

FAQ

What is the contact material for the M80-8680822?

The contacts are made from phosphor bronze.

Does this connector include strain relief clips?

Yes, the connector features integrated strain relief clips for added mechanical stability.
