M80-8681422

$4.47

Description：CONN HEADER R/A 14POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:2bb1a665627a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 14POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.235" (5.97mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Strain Relief Clips
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-8681422

Overview

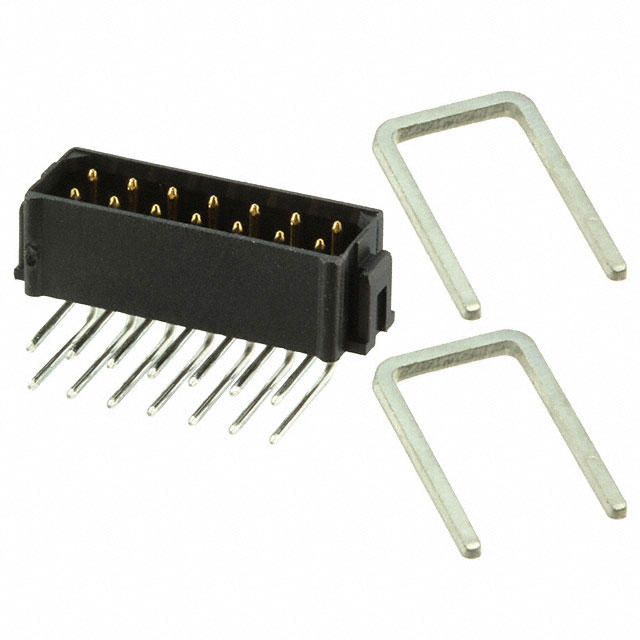

The Harwin M80-8681422 is a Datamate L-Tek male header connector featuring a 2.00mm pitch and 14 contacts arranged in a double row configuration. It utilizes right-angle through-board mounting with 3.00mm PCB termination length. The connector supports a current rating of 2.2A and a voltage rating of 120V. Contact surfaces are finished with tin-lead plating, while the housing is constructed from black PBT material reinforced with glass fiber, rated UL94 V-0. Operating temperature ranges from -55°C to 125°C.

Feature Summary

Four-leaf beryllium copper contact design suitable for high-speed data transmission
Integrated friction latch mechanism for secure mating retention
Right-angle orientation facilitates compact board-to-board or cable connections

Applications

Power supply units
Embedded systems
Automotive solutions

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific ordering suffix corresponds to the required contact finish and housing configuration. Ensure compatibility with mating female connectors within the same Datamate L-Tek series to guarantee proper mechanical engagement and electrical performance standards.

Selection Notes

Select this model for applications requiring robust high-speed data transmission capabilities alongside power delivery. The four-leaf contact structure provides enhanced signal integrity compared to standard designs. Evaluate the right-angle form factor against available board space constraints to ensure optimal routing efficiency and mechanical fit within the target assembly environment.

Part Context

This component belongs to the Harwin M80 series, specifically the Datamate L-Tek family. This series is engineered for demanding environments requiring reliable interconnection. The M80-8681422 variant specifically addresses needs for double-row, right-angle male headers with through-board termination, distinguishing it from vertical or surface-mount alternatives within the broader product line.
