Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

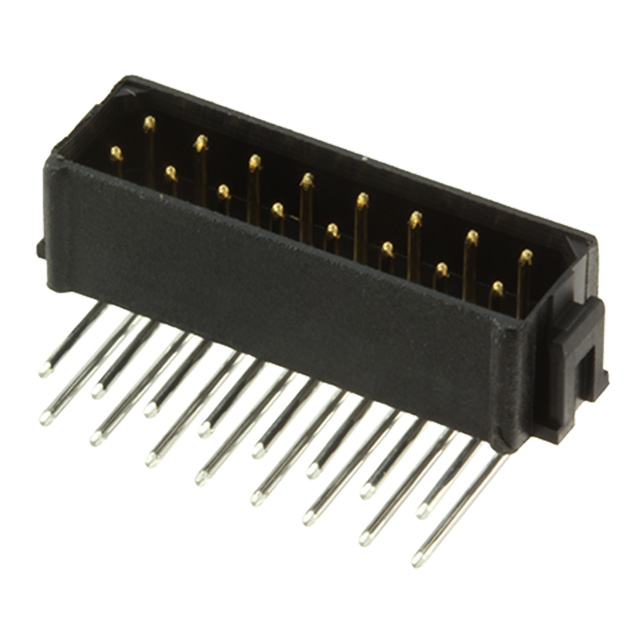

The M80-8681622 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 16-position configuration arranged in a dual in-line (8+8) layout with a 2.00mm pitch. Designed for right-angle through-hole mounting, this black connector utilizes solder termination for secure PCB attachment. The contacts are constructed from beryllium copper with a gold finish thickness of 3.00µm to ensure reliable signal transmission. Rated for 2.2A current and 120V voltage, it operates within a temperature range of -55°C to +125°C.
Feature Summary
- High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
- Datamate Mix-Tek series design provides robust mechanical locking via latching slide mechanism
- Right-angle through-hole installation facilitates compact board-to-board or wire-to-board interconnections
Applications
- Industrial control systems requiring high-vibration resistance
- Automotive electronics interfaces
- Medical device internal wiring connections
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, orientation, and plating specifications. Ensure compatibility with mating female connectors from the same Datamate L-Tek family. Confirm that the right-angle through-hole form factor matches the target PCB footprint requirements before finalizing procurement orders.
Selection Notes
Select this component when a right-angle male header with 16 positions is required for space-constrained applications. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the 2.2A current rating and 120V voltage limit to ensure safe operation within the intended electrical environment and thermal conditions.
Part Context
This part belongs to the Harwin Datamate L-Tek series, known for its high reliability and durability in demanding environments. The L-Tek variant specifically offers enhanced mechanical stability compared to standard Mix-Tek connectors, making it suitable for applications subject to shock and vibration. It complements the broader Datamate ecosystem of mating connectors and accessories.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate other Harwin Datamate L-Tek headers with identical 16-position, right-angle, through-hole specifications if availability is an issue.
