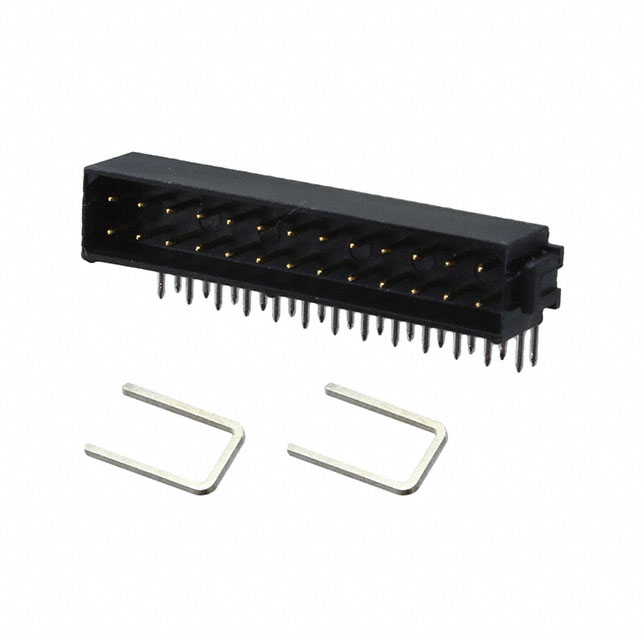

M80-8682622

$6.44

Description：CONN HEADER R/A 26POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:9b63e2fc002f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 26POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.235" (5.97mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Strain Relief Clips
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-8682622

Overview

The M80-8682622 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 26-position, dual-row configuration with a 2.00mm pitch and row spacing. Designed for surface-mount installation, it utilizes solder termination. The contacts are gold-plated phosphor bronze posts with a thickness of 118.1µin (3.00µm). Rated for 120V voltage, the connector operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Feature Summary

High mechanical resilience with 100G shock, 40G bump, and 10G vibration resistance capabilities.
Surface-mount design with four-wall shielding for enhanced environmental protection.
Robust contact construction using gold-plated phosphor bronze for reliable signal transmission.

Applications

Board-to-board interconnections in high-vibration environments
Cable-to-board assemblies requiring surface-mount termination
Industrial control systems demanding shock and vibration resistance

Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified partners. Confirm that the received parts match the M80-8682622 designation and exhibit no physical damage. Ensure storage conditions comply with manufacturer guidelines to maintain solderability and material integrity prior to assembly.

Selection Notes

Select this model for applications requiring high mechanical durability and surface-mount compatibility. The dual-row layout supports dense circuit designs while the shielding offers protection against external interference. Consider the 2.00mm pitch constraints when designing PCB footprints and mating connector interfaces.

Part Context

This component belongs to the Datamate L-Tek series, known for high-reliability rectangular connectors. The series is engineered for harsh environments, offering superior performance compared to standard connectors. The M80-8682622 specifically addresses needs for robust, shielded, surface-mount solutions in compact form factors.
