M80-8690622

Overview

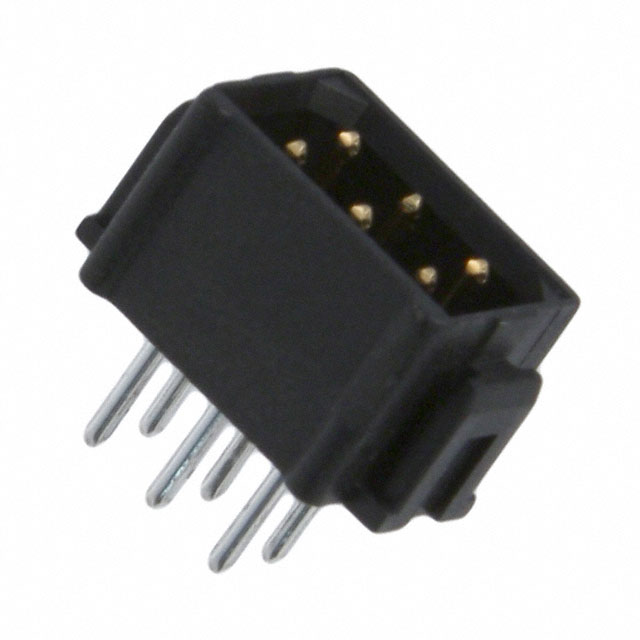

The M80-8690622 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a vertical surface mount termination style with a 2mm pitch and 6 positions arranged in a dual inline configuration (3+3). The contacts are gold-plated phosphor bronze, while the tin-lead terminated pins ensure reliable soldering. Constructed from black PPS insulation rated UL94 V-0, it supports board-to-board or cable connections. Rated for 120V and 3A, it operates within a temperature range of -55°C to 125°C.

Feature Summary

• Provides high mechanical stability through 100G shock, 40G bump, and 10G vibration resistance ratings.
• Utilizes friction lock retention mechanisms to secure mating connections without additional fasteners.
• Features shielded four-wall housing design to protect contacts and maintain signal integrity.

Applications

• Industrial control systems requiring robust vibration resistance
• Automotive electronics interfaces
• High-density board-to-board interconnects

Procurement Notes

Verify RoHS compliance status as this specific part number may not meet current environmental directives. Confirm lead times due to potential supply chain constraints. Ensure compatibility with mating female connectors in the same Datamate series. Check for updated REACH declarations before final procurement approval.

Selection Notes

Select this component when vertical mounting space is limited but high mechanical durability is required. The 2mm pitch allows for dense circuit layouts. Consider the tin-lead termination if lead-free processes are not mandated. Evaluate the 120V rating against system voltage requirements to ensure adequate safety margins.

Part Context

This connector belongs to the Datamate L-Tek family, known for compact form factors and high reliability. It is designed for applications demanding small footprint solutions with strong mechanical performance. The series supports various termination styles and contact counts to accommodate diverse electronic assembly needs.

Replacement Considerations

M80-8690642 serves as a lead-free alternative within the same series. Verify pin count and pitch compatibility before substitution. Ensure mating connector specifications align with the replacement part's electrical and mechanical properties.

FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze with a gold plating finish.

Does this connector support surface mount technology?

Yes, the M80-8690622 is designed for vertical surface mount termination.
